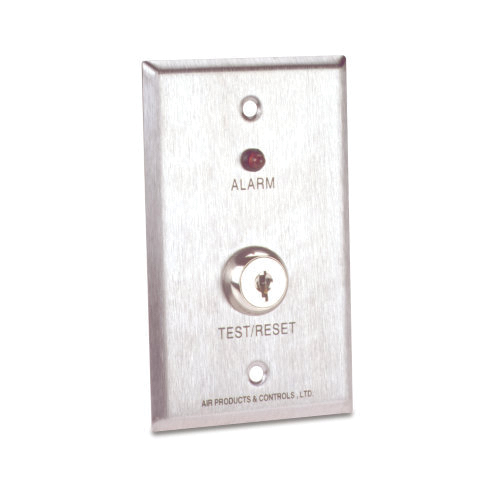

Air Products and Controls MS-KA/R Remote With Red Alarm LED and Key Test Reset, 24 V, 15 mA, Pigtail, 114.3 mm L
Air Products and Controls MS-KA/R Remote With Red Alarm LED and Key Test Reset, 24 V, 15 mA, Pigtail, 114.3 mm L
Manufacturer: Air Products and Controls
Brand: Air Products and Controls
Part #: 72805
MPN: MS-KA/R
CPN:
| Amperage Rating | : | 15 mA |
| Electrical Connection Type | : | Pigtail |
| For Use With | : | Air Products and Control ADSD, DSD, RW Series Duct Smoke Detectors |
| Function Type | : | Remote |
| Installation / Mounting Type | : | Junction Box |
| Length | : | 114.3 mm |
| Material | : | Stainless Steel |
| Operating Temperature Rating | : | 0 to 49 deg C |
| Product Type | : | Remote |
| Product Weight | : | 0.34 lb |
| UL Listed | : | Yes |
| Voltage Rating | : | 24 V |
| Width | : | 69.85 mm |
The MS-KA/R remote accessory is designed to be used with the Air Products and Controls Duct Smoke Detectors to provide alarm LED visual indication as well as remote test/reset functions. These devices are constructed of attractive, yet durable brushed stainless steel and mount on a standard single electrical backbox.
Air Products and Controls Remote, 24 V, 15 mA, Pigtail Electrical Connection, Junction Box Installation / Mounting, 114.3 mm Length, 69.85 mm Width, Stainless Steel, For Use With: Air Products and Control ADSD, DSD, RW Series Duct Smoke Detectors, UL Listed: Yes, 0 to 49 deg C Operating Temperature
Red alarm LEDKey remote test/reset functions These devices are constructed of attractive, yet durable brushed stainless steel and mount on a standard single gang electrical backbox
