AquaGuard® 96142 Multi-Purpose Overflow Switch, 24 V Control, NO, 5 A, For Use With: Goliath® and Titan Drain Pans
AquaGuard® 96142 Multi-Purpose Overflow Switch, 24 V Control, NO, 5 A, For Use With: Goliath® and Titan Drain Pans

AquaGuard® 96142 Multi-Purpose Overflow Switch, 24 V Control, NO, 5 A, For Use With: Goliath® and Titan Drain Pans

AquaGuard® 96142 Multi-Purpose Overflow Switch, 24 V Control, NO, 5 A, For Use With: Goliath® and Titan Drain Pans

Manufacturer: CSW Industrials Inc
Brand: AquaGuard®
Part #: 72577
MPN: 96142
CPN:
Amperage Rating      :      5 A
Contact Configuration      :      NO
Control Voltage      :      24 V
For Use With      :      Goliath® and Titan Drain Pans
Function Type      :      Overflow Switch
Package Quantity      :      1 Case
Packaged Depth      :      13.4 in
Packaged Height      :      10.4 in
Packaged Width      :      15 in
Product Type      :      Overflow Switch
Shipping Weight      :      0.85 lb

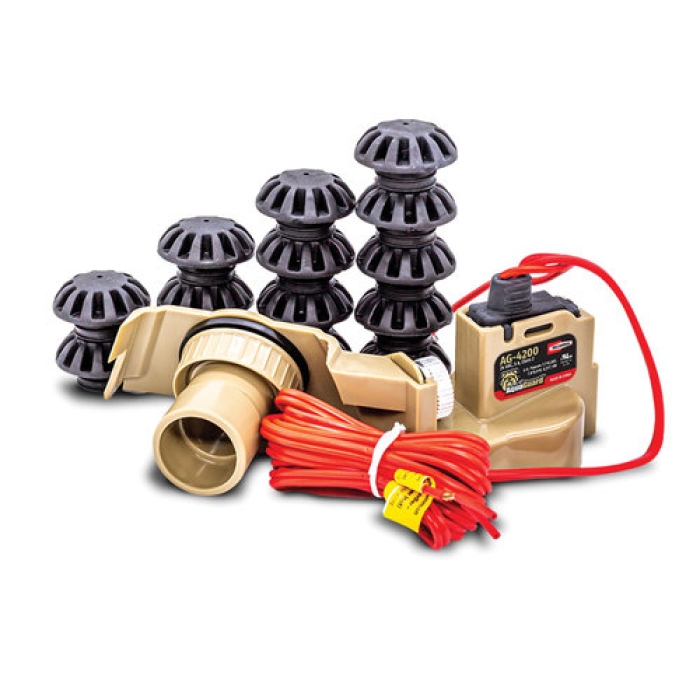

Multi-purpose condensate overflow sensor that combines the incredibly easy to install AG-1100+ with our industry leading Goliath® and Titan drain pan line to deliver the ultimate condensate management system. It can be mounted to the drain pan in 10 s.

AquaGuard® Multi-Purpose Overflow Switch, 24 V Control, Contact Configuration: NO, 5 A, For Use With: Goliath® and Titan Drain Pans

Easy, Drill-Free Installation
  • Complete condensate management kit with 14 vibration isolators
  • Adjustable Switch Sensitivity
  • Pull Up Test Lever
  • Vibration isolators are required on Goliath®/Spartan pan installations and Titan pan installations using Goliath risers
    • Catalog https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/AquaGuard_96106_Catalog.pdf
    • Instruction/Installation Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/AquaGuard_96142_Instruction_Installation_Manual.pdf
