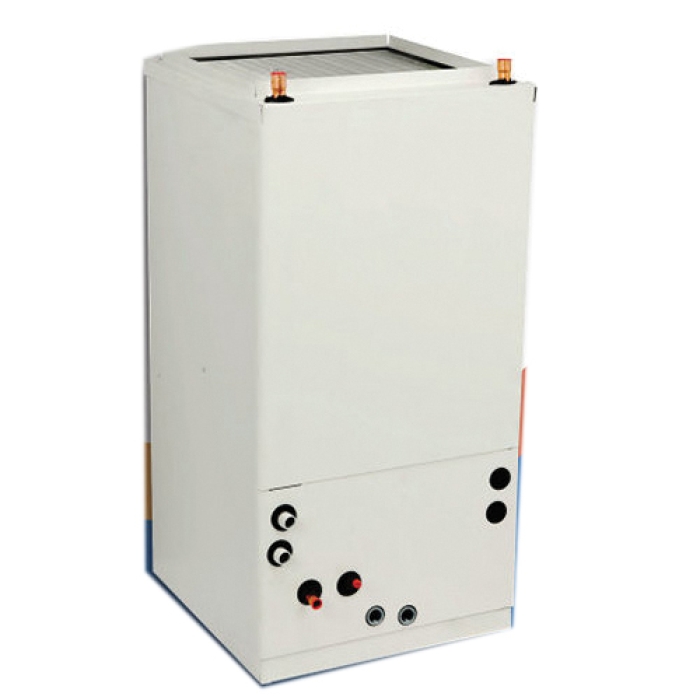

AquaTherm® HBXB-HW Series 18HBXB-HW-TXV-R410A Hydronic Air Handler, 1.5 ton, R-410A Refrigerant, 120 V, 810 cfm
AquaTherm® HBXB-HW Series 18HBXB-HW-TXV-R410A Hydronic Air Handler, 1.5 ton, R-410A Refrigerant, 120 V, 810 cfm
| Air Flow Direction | : | Horizontal, Upflow |
| BTU Cooling Rating | : | 18000 Btu/hr |
| CFM Airflow | : | 810 cfm |
| Depth | : | 20 in |
| Filter Size | : | 18 x 20 x 1 in |
| Height | : | 40 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | 18HBXB-HW |
| Product Family | : | HBXB-HW Series |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | TXV |
| Suction Line Size | : | 5/8 in |
| Tonnage | : | 1.5 ton |
| Voltage Rating | : | 120 V |
| Width | : | 20 in |
The HBXB-HW air handler is designed for use with today's high efficiency split-system condensing units, heat pumps, hot water boilers, and Tankless Water Heaters. The HBXB-HW can be directly wired to a boiler without adding additional relays or related controls. Multiple air handlers can be connected to a single boiler to provide comfortable, efficient, whole house hydronic space heating. For Tankless Water Heater applications, install the appropriate pump for the pressure drop. Cooling efficiencies are up to 15 SEER, depending on the outdoor condensing unit or heat pump model. These fan coils are compatible with any source of hot water that doesn't exceed 180 deg and is NSF/ANSI certified for use with domestic water.
AquaTherm® Hydronic Air Handler, R-410A Refrigerant, Horizontal, Upflow Air Flow Direction, 120 V, 18000 Btu/hr Cooling, 810 cfm, TXV Refrigeration Control Type, 20 in Width, 40 in Height, 20 in Depth, 3/8 in Liquid Line, 5/8 in Suction Line, 15 A Breaker Size, 18 x 20 x 1 in Filter
