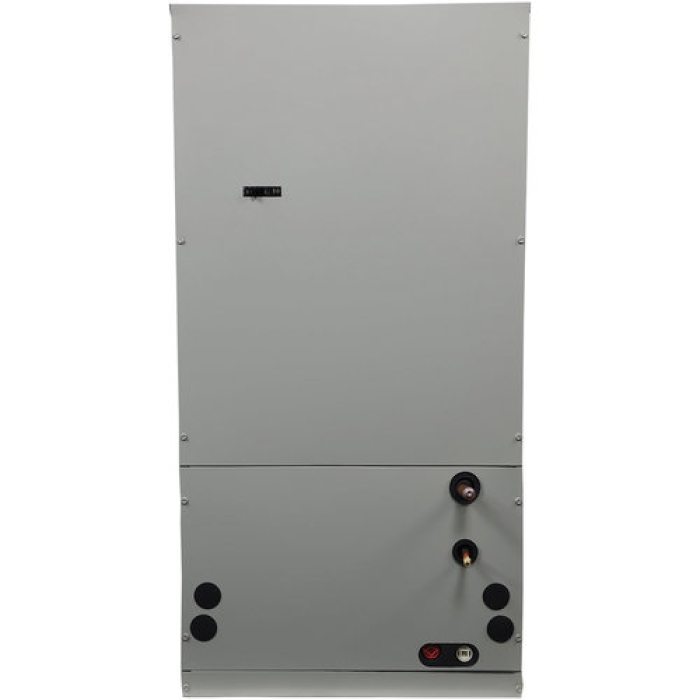

Aspen ABM Series ABM474-024-WC4XL Hydronic Air Handler, 4 ton, R-410A Refrigerant, Multi-Position Air Flow, 120 V
Aspen ABM Series ABM474-024-WC4XL Hydronic Air Handler, 4 ton, R-410A Refrigerant, Multi-Position Air Flow, 120 V
Manufacturer: Aspen Manufacturing
Brand: Aspen
Part #: 82627
MPN: ABM474-024-WC4XL
CPN:
| Air Flow Direction | : | Multi-Position |
| BTU Cooling Rating | : | 47000 Btu/hr |
| Depth | : | 28 in |
| Filter Size | : | 20 x 25 in |
| Height | : | 48 in |
| Motor Type | : | PSC |
| Number of Rows | : | 4 |
| Product Family | : | ABM Series |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | TXV |
| Shipping Weight | : | 200 lb |
| Tonnage | : | 4 ton |
| Voltage Rating | : | 120 V |
| Width | : | 21 in |
Aspen Hydronic Air Handler, R-410A Refrigerant, Multi-Position Air Flow Direction, 120 V, 47000 Btu/hr Cooling, TXV Refrigeration Control Type, 21 in Width, 48 in Height, 28 in Depth, PSC Motor, 20 x 25 in Filter
Upflow or horizontal right as shipped (field-convertible for downflow or horizontal left applications). Can be AHRI matched with most brands of air conditioners or heat pumpsLOW LEAKAGE CABINET - Less than 2% air leakage from cabinet when tested in accordance with ASHRAE standard 193. Unit must be installed according to Aspen installation instructions. Sturdy, fully insulated galvanized steel cabinet with knockout for duct return MODULAR HEAT KITS - Air Handlers are available with either factory-installed circuit breakers or terminal blocks. Hydronic Coils come in 2, 3 and 4 row with the options of pump or no pump configurations. Freeze stat is standard, wired into circulating pump control circuit. Controls are accessible from the front for easy service. Electrical connections can be made from the top or left. Disconnect protrudes through the front panel for easy access. Fan time delay relay standard for increased efficiency. Heat kits are available with or without circulating pump and check valve. Units are provided with auxiliary relay for remote pump. Schrader ports are standard on water-out manifold, hose bib available as an option BLOWER - Direct drive multi-speed blowers circulate air quietly and efficiently. Multiple motor speeds allow for precise air volume selection. Motor speeds can be easily selected via motor terminals. Blowers mounted on rails so they can be easily removed for service ELECTRONIC CONTROL BOARD - An electronic board controls the functioning of the system reducing moving parts. The board provides for various hot water supply source connections and the blower time delay to maximize heat/cool extraction. As an enhanced feature the pump circulates hot water every 6 hours to prevent water stagnation High-efficiency rifled copper tubes/enhanced aluminum fins provide maximum heat transfer All coils immersion tested at 500 psi then Nitrogen pressurized and factory sealed for maximum reliability Liquid-line Schrader allows pre-installation pressure assurance testing. Available with either orifice or TXV metering device Rugged GLN drain pan holds minimal condensate while eliminating the possibility of corrosion Drain pan is UV safe All drain connections are 3/4" NPT Access door allows for coil cleaning
