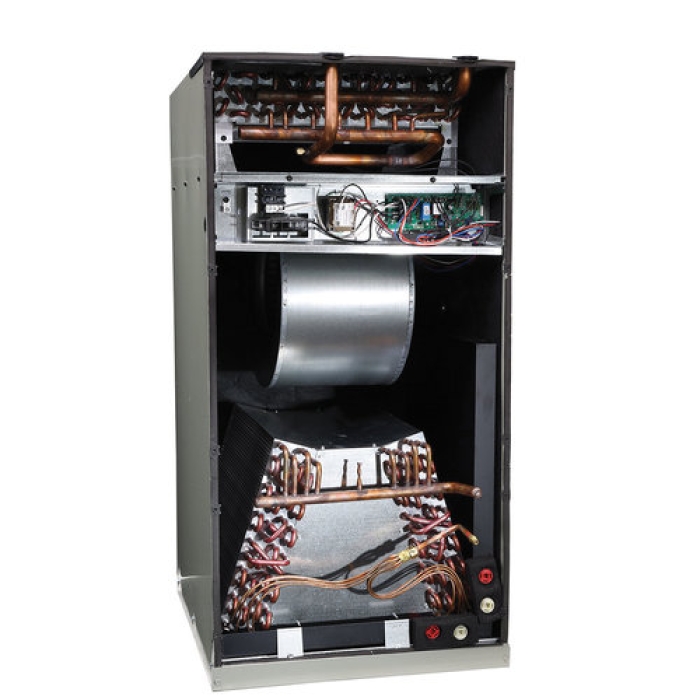

Aspen AFM Series AFM244-000-WC3SL Hydronic Heat Air Handler, 2 ton, R-410A Refrigerant, Multi-Position Air Flow, 120 V
Aspen AFM Series AFM244-000-WC3SL Hydronic Heat Air Handler, 2 ton, R-410A Refrigerant, Multi-Position Air Flow, 120 V
Manufacturer: Aspen Manufacturing
Brand: Aspen
Part #: 74463
MPN: AFM244-000-WC3SL
CPN:
| Air Flow Direction | : | Multi-Position |
| BTU Cooling Rating | : | 24000 Btu/hr |
| CFM Airflow | : | 853 cfm |
| Depth | : | 20-1/2 in |
| Height | : | 49-1/4 in |
| Liquid Line Size | : | 3/8 in |
| Motor Type | : | ECM, Constant Torque |
| Package Quantity | : | 4 Pack |
| Product Family | : | AFM Series |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | TXV |
| Shipping Weight | : | 100 lb |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2 ton |
| Voltage Rating | : | 120 V |
| Width | : | 21 in |
Aspen Hydronic Heat Air Handler, R-410A Refrigerant, Multi-Position Air Flow Direction, 120 V, 24000 Btu/hr Cooling, 853 cfm, TXV Refrigeration Control Type, 21 in Width, 49-1/4 in Height, 20-1/2 in Depth, 3/8 in Liquid Line, 3/4 in Suction Line, ECM, Constant Torque Motor
A1 (R410A and R22) products manufactured in 2025 or later will be labeled as "For servicing existing equipment only"120V Constant Torque ECM Motor (Hydronic Heat) - Air handler models come equipped with a 5-speed, constant torque ECM. Motor speed and torque are managed via integrated software to ensure consistent torque output across all operating conditions LOW LEAKAGE CABINET - Less than 2% air leakage from cabinet when tested in accordance with ASHRAE standard 193. Unit must be installed according to Aspen installation instructions. Sturdy, short, galvanized steel cabinet with painted front panels. Cabinet fully insulated with 1/2" faced insulation with encapsulate glass fibers to prevent sweating, and to provide excellent R-value. Stick pins ensure insulation remains in place. Units ship with disposable filter in filter rack. BLOWER - Direct drive blowers circulate air quietly and efficiently. Motor speeds and torques programmed in the motor. Blowers mounted on rails so they can be easily removed for service ELECTRONIC CONTROL BOARD - Electronic circuit board provides 30 sec. ON/OFF blower time delay extracting more heat/cool from the coil. An electronic board controls the functioning of the system reducing moving parts. The board provides for various hot water supply source connections and the blower time delay to maximize heat/cool extraction. As an enhanced feature the pump circulates hot water every 6 hours to prevent water stagnation and coil freezing MODULAR HYDRONIC HEAT KITS - Air Handlers are available with either factory-installed circuit breakers or terminal blocks. Hydronic Coils come in 2, 3 and 4 row with the options of pump or no pump configurations. Freeze stat is standard, wired into circulating pump control circuit. Controls are accessible from the front for easy service. Electrical connections can be made from the top or left. Disconnect protrudes through the front panel for easy access. Fan time delay relay standard for increased efficiency. Heat kits are available with or without circulating pump and check valve. Units are provided with auxiliary relay for remote pump. Schrader ports are standard on water-out manifold, hose bib available as an option DX COIL - High-efficiency rifled copper tubes/enhanced aluminum fins provide maximum heat transfer. All coils immersion tested at 500 psi then nitrogen pressurized and factory sealed for maximum reliability. Liquid-line Schrader allows preinstallation pressure testing. Available with either orifice or TXV metering device. Field-installable bolt-on TXVs are also available. Rugged, UV safe, GLP drain pan holds minimal condensate while eliminating the possibility of corrosion. Galvanized metal drain pan with bottom primary and secondary drain connections or alternate right side primary. All connections 3/4" FPT. Access door allows for coil cleaning
