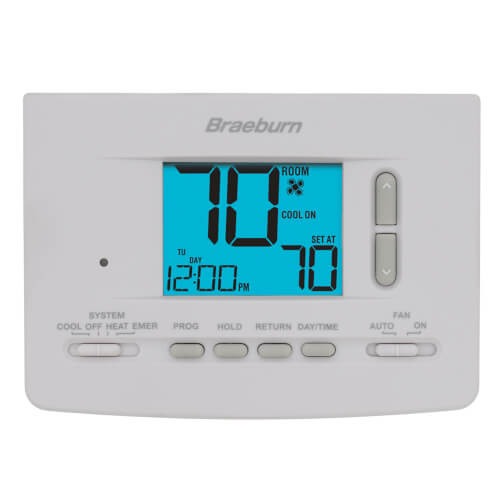

Braeburn® 2220 Programmable Thermostat, 18-30 V, 3 V, 2H/2C-Stage, Battery, Hardwired, Alkaline, Backlit Display, 4 A
Braeburn® 2220 Programmable Thermostat, 18-30 V, 3 V, 2H/2C-Stage, Battery, Hardwired, Alkaline, Backlit Display, 4 A

Braeburn® 2220 Programmable Thermostat, 18-30 V, 3 V, 2H/2C-Stage, Battery, Hardwired, Alkaline, Backlit Display, 4 A

Braeburn® 2220 Programmable Thermostat, 18-30 V, 3 V, 2H/2C-Stage, Battery, Hardwired, Alkaline, Backlit Display, 4 A

Manufacturer: Braeburn Systems LLC
Brand: Braeburn®
Part #: 82982
MPN: 2220
CPN:
Accuracy      :      +/-1 deg F
Ambient Temperature Rating      :      45 to 90 deg F
Amperage Rating      :      4 A
Battery Type      :      Alkaline
Depth      :      1.38 in
Differential Temperature      :      0.5 deg F, 1 deg F, 2 deg F 1st Stage, 1 deg F, 2 deg F, 3 deg F, 4 deg F, 5 deg F, 6 deg F 2nd Stage
Display Type      :      Backlit
Function Type      :      Programmable Thermostat
Height      :      3.7 in
Humidity Rating      :      5 to 95 %
Number of Stages      :      2H/2C
Power Source      :      Battery, Hardwired
Terminal Designations      :      Rc, Rh, Y1, Y2, G, W1/E, W2, O, B, C
Voltage Rating      :      18-30 V, 3 V
Width      :      5.16 in

Braeburn® Programmable Thermostat, 2H/2C Stages, Battery, Hardwired Power Source, Alkaline Battery, Backlit Display, 45 to 90 deg F Ambient Temperature Rating, 0.5 deg F, 1 deg F, 2 deg F 1st Stage, 1 deg F, 2 deg F, 3 deg F, 4 deg F, 5 deg F, 6 deg F 2nd Stage Differential Temperature, +/-1 deg F Accuracy, 5 to 95 % Humidity Rating, 4 A, Rc, Rh, Y1, Y2, G, W1/E, W2, O, B, C Terminal Designations, 3.7 in Height, 5.16 in Width, 1.38 in Depth
