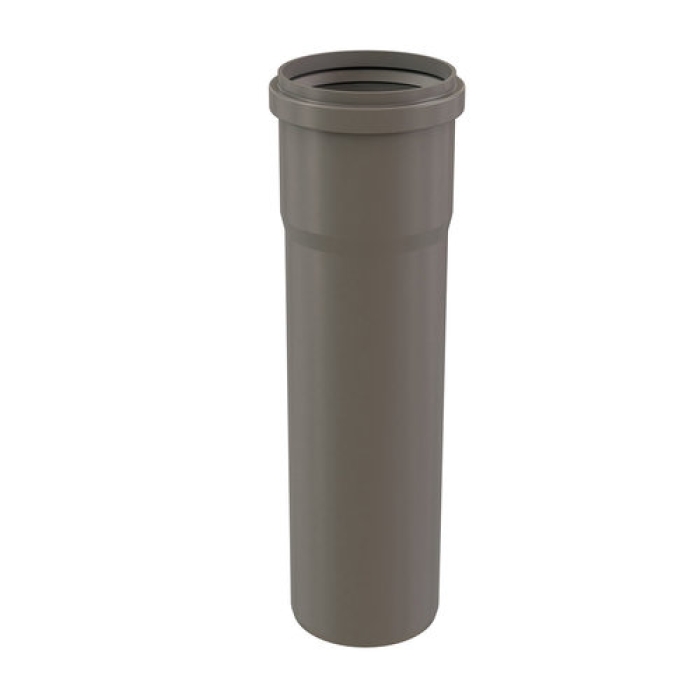

Centrotherm InnoFlue ISVL041 Single Wall Vent Length Pipe, 16 in L, 5.1 in OD, 12 in L Effective Length, Polypropylene

Centrotherm InnoFlue ISVL041 Single Wall Vent Length Pipe, 16 in L, 5.1 in OD, 12 in L Effective Length, Polypropylene

Manufacturer: Ubbink Centrotherm Group
Brand: Centrotherm
Part #: 57806
MPN: ISVL041
CPN:
Color      :      Gray
Effective Length      :      12 in
For Pipe Size      :      4 in
Length      :      16 in
Material      :      Polypropylene
Operating Temperature Rating      :      120 deg C
Outside Diameter      :      5.1 in
Package Quantity      :      9 Pack
Packaged Depth      :      5 in
Packaged Height      :      5 in
Packaged Width      :      16 in
Product Family      :      InnoFlue
Product Type      :      Vent Pipe
Product Weight      :      0.9 lb
Shipping Weight      :      0.9 lb

Constructed from UL1738 and ULCS636 listed polypropylene, InnoFlue vent lengths are the central component in our industry leading vent system. Engineered to withstand flue gas temperatures up to 230 deg F (110 deg C), InnoFlue vent lengths provide an environmentally friendly venting solution that installs quickly without any glues, primers, or solvents. InnoFlue vent lengths are thin-wall and lightweight combining performance and durability.

Centrotherm InnoFlue Single Wall Vent Length Pipe, 16 in Length, 5.1 in Outside Diameter, 12 in Effective Length, Polypropylene, For Pipe Size: 4 in, Gray, 120 deg C Operating Temperature

Evaluated to UL1738 and ULCS636 by ICC.
  • Engineered for high-efficiency venting up to 230 deg F (110 deg C).
  • Durable and lightweight.
  • Integrated gasket assures airtight seal without without glues, primers, or solvents.
  • Available in up to industry-best 10 ft lengths
    • Catalog https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Centrotherm_IASJBVS_Catalog.pdf
    • Instruction/Installation Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Centrotherm_IACE50_Instruction_Installation_Manual.pdf
    • videoVideo Link https://www.youtube.com/watch?v=_xq01LxxKhc
