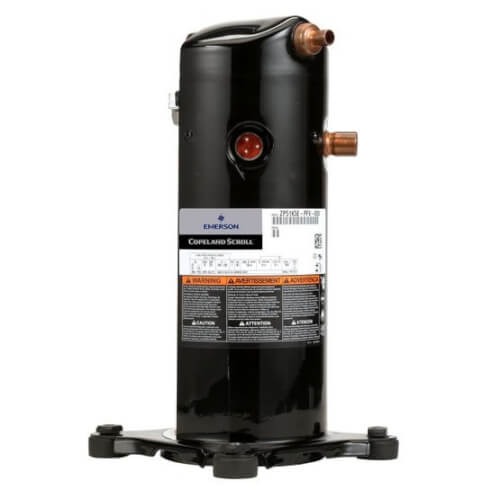

Copeland™ ZR21K5E-PFV-800 Scroll Compressor, R-22, R-407C Refrigerant, 208/230 V, 1 ph, 21000 Btu/hr Cooling BTU
Copeland™ ZR21K5E-PFV-800 Scroll Compressor, R-22, R-407C Refrigerant, 208/230 V, 1 ph, 21000 Btu/hr Cooling BTU
Manufacturer: Copeland LP
Brand: Copeland™
Part #: 34538
MPN: ZR21K5E-PFV-800
CPN:
| BTU Cooling Rating | : | 21000 Btu/hr |
| Compressor Type | : | Scroll |
| Diameter | : | 9-1/2 in |
| Discharge Line Size | : | 1/2 in |
| Function Type | : | Scroll Compressor |
| Height | : | 15-5/16 in |
| Locked Rotor Amps (LRA) | : | 56 A |
| Motor HP | : | 1-3/4 hp |
| Phase | : | 1 ph |
| Rated Load Amps (RLA) | : | 12 A |
| Refrigerant Type | : | R-22, R-407C |
| Suction Line Size | : | 3/4 in |
| UL Listed | : | Yes |
| Voltage Rating | : | 208/230 V |
Copeland™ Scroll Compressor, R-22, R-407C Refrigerant, 208/230 V, 1 ph Phase, 21000 Btu/hr Cooling, Scroll Compressor, 1-3/4 hp Motor HP, 3/4 in Suction Line, 1/2 in Discharge Line, 12 A Rated Load Amps, 56 A Locked Rotor Amps, 9-1/2 in Diameter, 15-5/16 in Height, UL Listed: Yes
