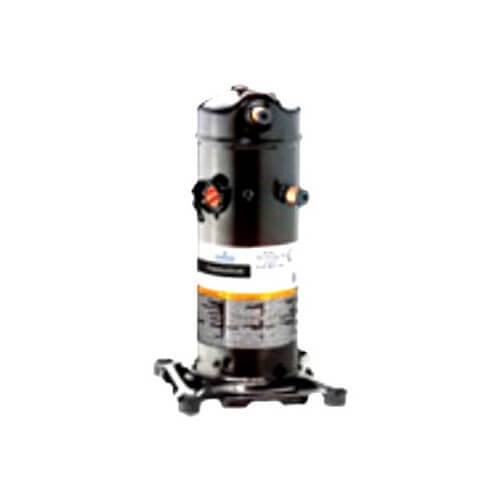

Copeland™ ZR61K3E-TF5-950 Compressor, R-22, R-407C Refrigerant, 200-230 V, 3 ph, 62000 Btu Cooling BTU, 19.3 A RLA
Copeland™ ZR61K3E-TF5-950 Compressor, R-22, R-407C Refrigerant, 200-230 V, 3 ph, 62000 Btu Cooling BTU, 19.3 A RLA
Manufacturer: Copeland LP
Brand: Copeland™
Part #: 66684
MPN: ZR61K3E-TF5-950
CPN:
| BTU Cooling Rating | : | 62000 Btu |
| Compressor Oil Type | : | Polyolester |
| Compressor Type | : | Hermetic Scroll |
| Depth | : | 9.83 in |
| Discharge Line Size | : | 1/2 in |
| Function Type | : | Compressor |
| Height | : | 17.24 in |
| Locked Rotor Amps (LRA) | : | 137 A |
| Phase | : | 3 ph |
| Rated Load Amps (RLA) | : | 19.3 A |
| Refrigerant Type | : | R-22, R-407C |
| Suction Line Size | : | 7/8 in |
| UL Listed | : | Yes |
| Voltage Rating | : | 200-230 V |
| Width | : | 9.69 in |
Copeland™ Compressor, R-22, R-407C Refrigerant, 200-230 V, 3 ph Phase, 62000 Btu Cooling, Hermetic Scroll Compressor, 7/8 in Suction Line, 1/2 in Discharge Line, 19.3 A Rated Load Amps, 137 A Locked Rotor Amps, Polyolester Compressor Oil, 17.24 in Height, 9.69 in Width, 9.83 in Depth, UL Listed: Yes
