CPS® 5-2-1® TPSPD Thermally-Protected Surge Protection Device, 120/240 V, 1 ph, 100000 A Max Surge Current, 200 kA SCCR

Manufacturer: CPS Products
Brand: CPS®
Part #: 81575
MPN: TPSPD
CPN:
Function Type      :      Surge Protective Device
Maximum Surge Current      :      100000 A
NEMA Enclosure Type      :      NEMA 4X
Phase      :      1 ph
Product Family      :      5-2-1®
Product Type      :      Surge Protective Device
Short Circuit Current Rating (SCCR)      :      200 kA
UL Listed      :      Yes
Voltage Protection Rating      :      600 V Line to Neutral, 1200 V Line to Line
Voltage Rating      :      120/240 V

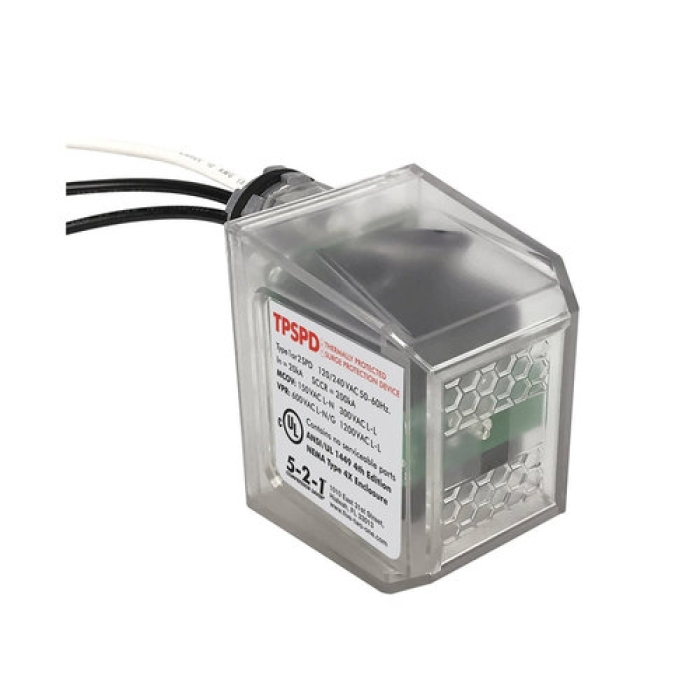

The 5-2-1® Thermally Protected Surge Protection device, TPSPD, is designed to protect HVAC equipment and other high-end appliances from damaging electrical surges produced by proximity lightning strikes and other power line transients. Engineered using the latest in Thermally Protected Metal Oxide Varistor (MOV) technology and independently tested to ensure superior protection and reliability for your customers.

CPS® 5-2-1® Thermally-Protected Surge Protection Device, 120/240 V, 1 ph Phase, 100000 A Maximum Surge Current, 600 V Line to Neutral, 1200 V Line to Line Voltage Protection, NEMA 4X NEMA Enclosure Type, 200 kA Short Circuit Current (SCCR), UL Listed: Yes

Patented thermally protected MOV
  • Type 1 or 2 installations (A/C disconnect, Junction box, Electrical box)
  • Diagnostic indicator (Green LED [ON] = Device active, Green LED [OFF] = Replace device)
