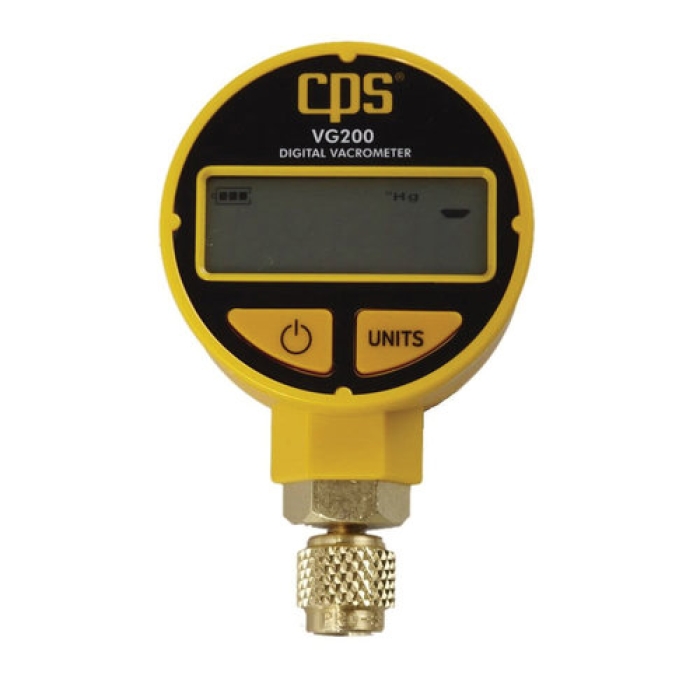

CPS® VACROMETER™ VG200 Digital Vacuum Gauge, Atmospheric to 1 um Vacuum, +/-10 % Accuracy, 1/4 in x Female SAE, Battery

CPS® VACROMETER™ VG200 Digital Vacuum Gauge, Atmospheric to 1 um Vacuum, +/-10 % Accuracy, 1/4 in x Female SAE, Battery

Manufacturer: CPS Products
Brand: CPS®
Part #: 33777
MPN: VG200
CPN:
Accuracy      :      +/-10 %
Battery Life      :      25 hr
Battery Type      :      Alkaline
Connection Size      :      1/4 in
Connection Type      :      Female SAE
Display Type      :      LCD
Maximum Working Pressure      :      400 psi
Power Source      :      Battery
Product Family      :      VACROMETER™
Product Type      :      Vacuum Gauge
Product Weight      :      5.5 oz
Vacuum Range      :      Atmospheric to 1 um

This versatile powerhouse is setting the standard for vacuum measurement precision. With best-in-class accuracy and reliability, the VG200 digital vacuum gauge allows HVACR techs to confidently monitor evacuation procedures from start to finish. Calibrated to strict NIST standards, it provides the flexibility to quickly and easily select or change units from Microns, Millibar, Torr and Inches/HG with its simple two-button operation. This field-ready digital vacrometer automatically compensates for varying temperature conditions, with no manual adjustments necessary.

CPS® VACROMETER™ Digital Vacuum Gauge, +/-10 % Accuracy, 1/4 in Connection, Female SAE Connection, LCD Display, 400 psi Maximum Working Pressure, Battery Power Source, Alkaline Battery, 25 hr Battery Life

Calibrated to strict NIST standards for dependable, repeatable readings
  • Live evacuation tracking from start to finish
  • Automatic temperature compensation, no manual tweaks needed
  • Switch units on the fly with simple two-button control
  • Precisely measure Microns, Millibar, Torr and Inches/HG
  • Rugged, cleanable sensor built for the field
  • Large, easy to read 5-digit LCD display
  • 25-hour runtime
  • Gauge hook, adapter "T-fitting" and padded vinyl case
    • Owners/User Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/CPS_VG200_Owners_User_Manual.pdf
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/CPS_VG200_Specification_Sheet.pdf
    • videoVideo Link https://www.youtube.com/watch?v=NA1lDfFGylQ
