| Connection Size 1 | : | 1/4 in |
| Connection Size 2 | : | 1/4 in |
| Connection Type 1 | : | SAE Flared |
| Connection Type 2 | : | SAE Flared |
| Maximum Working Pressure | : | 200 psi |
| Package Quantity | : | 1 Pack |
| Packaged Depth | : | 6 in |
| Packaged Height | : | 1.85 in |
| Packaged Width | : | 7.5 in |
| Product Type | : | Purge Tool |
| Shipping Weight | : | 0.4 lb |

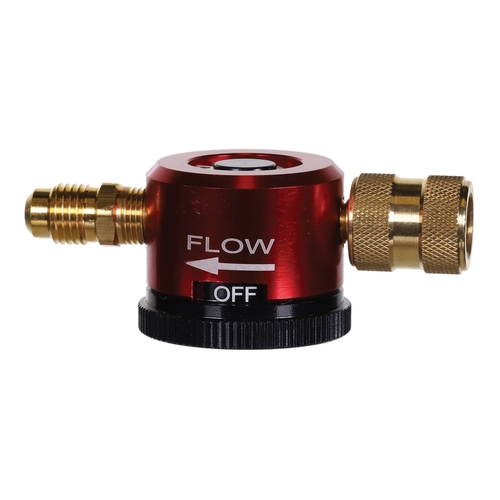

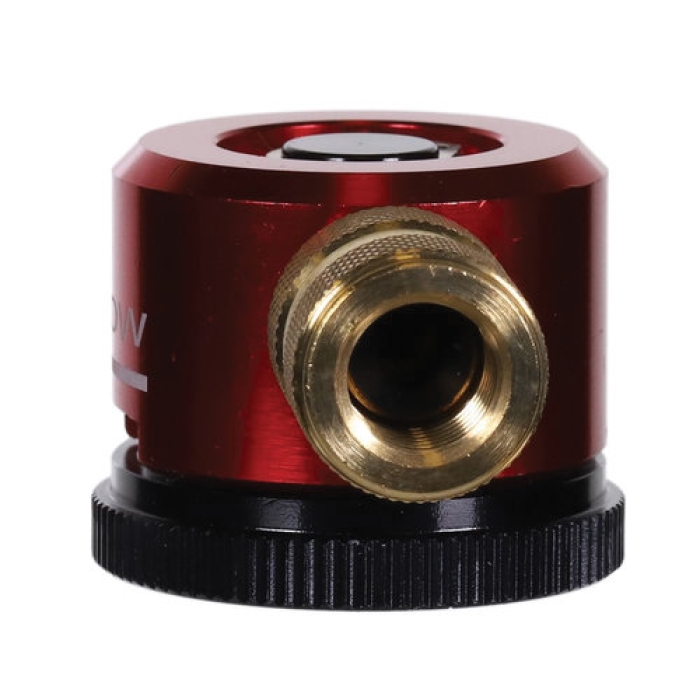

The DP-1 Nitrogen purge tools a quick and easy way to purge copper pipes with nitrogen. Then, with a turn of the dial, quickly switch to a very low flow of nitrogen to properly braze the copper. It has a durable aluminum design so you can just throw it into your tool bag when you are done. Inlet pressure of 50 PSI and max pressure of 200 PSI. The tool includes 1/4 in. male SAE -flare outlet, 1/4 in. swivel female SAE -flare inlet with a thread size of 7/16 - 20 and a rated purge flow 25-35 scfh (standard cubic feet per hour). This product is made by DiversiTech brand.
DiversiTech® Nitrogen Purge Tool, 1/4 in Connection Size 1, 1/4 in Connection Size 2, Connection Type 1: SAE Flared, Connection Type 2: SAE Flared, 200 psi Maximum Working Pressure
