DiversiTech® HP3232-8 Heat Pump Pad, 307 lb Load, 8 in H, 32 in W, 32 in D, Polypropylene, Anti-Vibration: Yes, Gray
DiversiTech® HP3232-8 Heat Pump Pad, 307 lb Load, 8 in H, 32 in W, 32 in D, Polypropylene, Anti-Vibration: Yes, Gray
DiversiTech® HP3232-8 Heat Pump Pad, 307 lb Load, 8 in H, 32 in W, 32 in D, Polypropylene, Anti-Vibration: Yes, Gray
DiversiTech® HP3232-8 Heat Pump Pad, 307 lb Load, 8 in H, 32 in W, 32 in D, Polypropylene, Anti-Vibration: Yes, Gray
DiversiTech® HP3232-8 Heat Pump Pad, 307 lb Load, 8 in H, 32 in W, 32 in D, Polypropylene, Anti-Vibration: Yes, Gray
DiversiTech® HP3232-8 Heat Pump Pad, 307 lb Load, 8 in H, 32 in W, 32 in D, Polypropylene, Anti-Vibration: Yes, Gray

DiversiTech® HP3232-8 Heat Pump Pad, 307 lb Load, 8 in H, 32 in W, 32 in D, Polypropylene, Anti-Vibration: Yes, Gray

DiversiTech® HP3232-8 Heat Pump Pad, 307 lb Load, 8 in H, 32 in W, 32 in D, Polypropylene, Anti-Vibration: Yes, Gray

Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 69386
MPN: HP3232-8
CPN:
Anti-Vibration      :      Yes
Color      :      Gray
Depth      :      32 in
For Use With      :      Heat Pumps Condensers
Function Type      :      Heat Pump Pad
Height      :      8 in
Load Capacity      :      307 lb
Material      :      Polypropylene
Package Quantity      :      16 Pack
Width      :      32 in

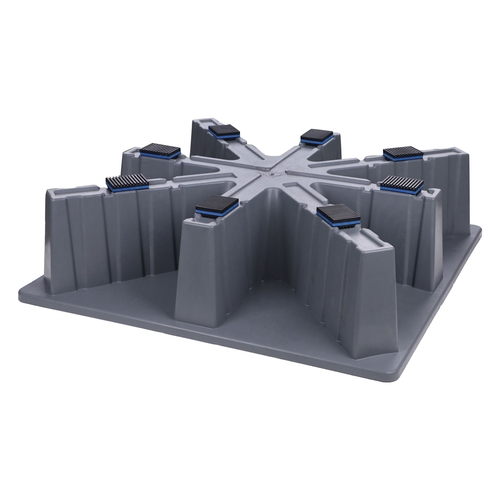

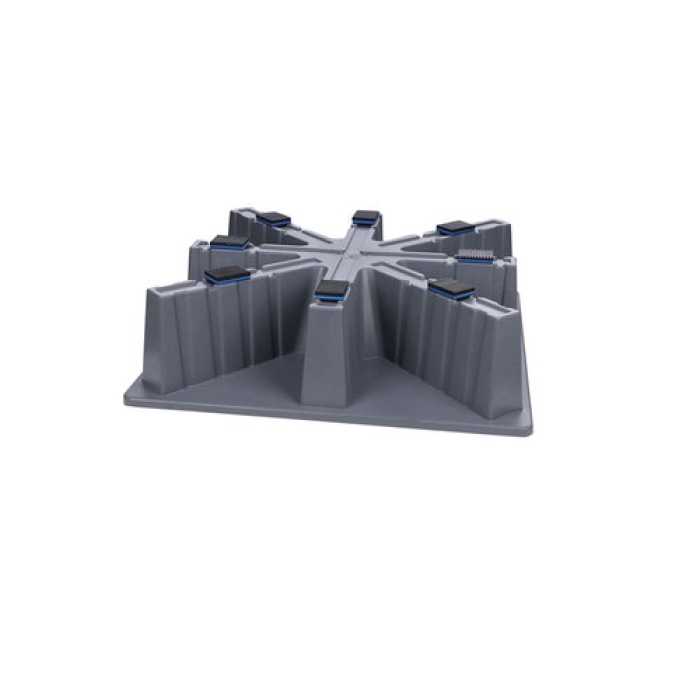

The Heat Pump Pad™ HP3232-8 is a 32x32x8 in. base pad for heat pumps installed in snowy climates. Rather than the typical combination of an equipment pad and 6 in. heat pump risers, the Heat Pump Pad provides a full 8 in. of elevation in a square footprint. The star pattern of the integral risers allows for installation of equipment with different size footprints up to 32 in. X 32 in. Risers are molded into the pad to form a solid single piece base.

DiversiTech® Heat Pump Pad, 8 in Height, 32 in Width, 32 in Depth, Polypropylene, Anti-Vibration: Yes, Gray, For Use With: Heat Pumps Condensers

Single piece construction is stronger and faster to install than typical combination of equipment pad and 6 in. heat pump risers
  • Innovative star pattern of integral risers allows for installation of equipment with different size footprints up to 32 in. X 32 in
  • Heat Pump Pad™ kit includes eight anti-vibration pads custom made to fit into the guide slots on the top of the integral risers and can be adjusted to equipment footprint
  • The base is sloped outward to allow for easy drainage of condensate or defrost cycle condensate when the outdoor coil is operating in heat pump mode
  • The nestable feature of the Heat Pump Pad™ makes for efficient shipping, transportation and warehousing
  • Environmentally friendly, molded from recycled polypropylene material
  • Unaffected by UV exposure or extreme weather
  • Drillable making it easy to secure equipment to the pad if necessary
  • Made in the USA
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/DiversiTech_HP3232_8_Specification_Sheet.pdf
    • videoVideo Link https://s3.us-west-2.amazonaws.com/catsy.898/HP3232-8_360photo.mp4
