Duro Dyne® 004002 Vane Rail, Steel, 24 ga Gauge, Galvanized, 100 ft L, 4-1/2 in W
Duro Dyne® 004002 Vane Rail, Steel, 24 ga Gauge, Galvanized, 100 ft L, 4-1/2 in W

Duro Dyne® 004002 Vane Rail, Steel, 24 ga Gauge, Galvanized, 100 ft L, 4-1/2 in W

Duro Dyne® 004002 Vane Rail, Steel, 24 ga Gauge, Galvanized, 100 ft L, 4-1/2 in W

Manufacturer: NSi Industries
Brand: Duro Dyne®
Part #: 1781
MPN: 004002
CPN:
Finish      :      Galvanized
Length      :      100 ft
Material Gauge      :      24 ga
Material      :      Steel
Product Type      :      Vane Rail
Width      :      4-1/2 in

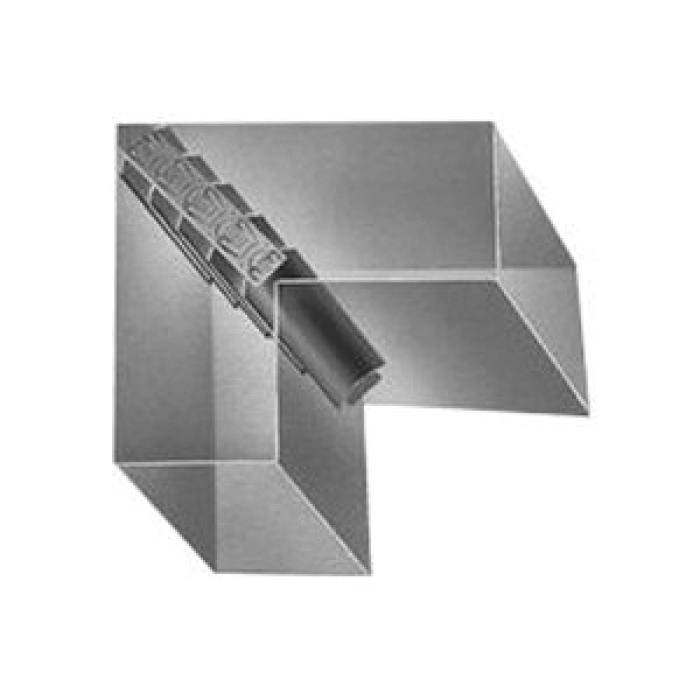

Air travelling throughout a duct is slowed up when it reaches a right turn angle. This "slowup" is detrimental to the efficiency of the duct system, therefore air turning vane assemblies are used to guide air evenly around such turns. With today's high labor costs, it is expensive for shops to produce their own air turning assemblies. That is why Duro Dyne Vane Rail is a major contribution to sheet metal shops that require efficient, yet inexpensive air turning assemblies. With Duro Vane Rail, which is a pre-fab side rail, layout time is eliminated. Vanes can be sheared from scrap metal without tab cutting, and quickly assembled to rails with only one blow of a ball peen hammer.

Duro Dyne® Vane Rail, Steel, Material Gauge: 24 ga, Galvanized, 100 ft Length, 4-1/2 in Width

Duro Dyne Vane Rail is made of 24 gauge galvanized steel, is precision-stamped and slotted, assuring uniform spacing of vanes, and is the fastest, easiest, most economical construction of vane assemblies
  • Duro Dyne Vane Rail is specially embossed adding strength and sturdiness to the finished section. Vane Rail can be used to make quality turning vanes for any size elbow including change of size elbows
