Duro Dyne® Metal Fab® 010232 Flexible Duct Connector, Duct Connector, 100 ft L, Neoprene/Stainless Steel, 24 ga Gauge
Duro Dyne® Metal Fab® 010232 Flexible Duct Connector, Duct Connector, 100 ft L, Neoprene/Stainless Steel, 24 ga Gauge
Duro Dyne® Metal Fab® 010232 Flexible Duct Connector, Duct Connector, 100 ft L, Neoprene/Stainless Steel, 24 ga Gauge

Duro Dyne® Metal Fab® 010232 Flexible Duct Connector, Duct Connector, 100 ft L, Neoprene/Stainless Steel, 24 ga Gauge

Duro Dyne® Metal Fab® 010232 Flexible Duct Connector, Duct Connector, 100 ft L, Neoprene/Stainless Steel, 24 ga Gauge

Manufacturer: NSi Industries
Brand: Duro Dyne®
Part #: 36486
MPN: 010232
CPN:
Length      :      100 ft
Material Gauge      :      24 ga
Material      :      Neoprene/Stainless Steel
Product Family      :      Metal Fab®
Product Type      :      Duct Connector
Size      :      3 x 3 x 3 in

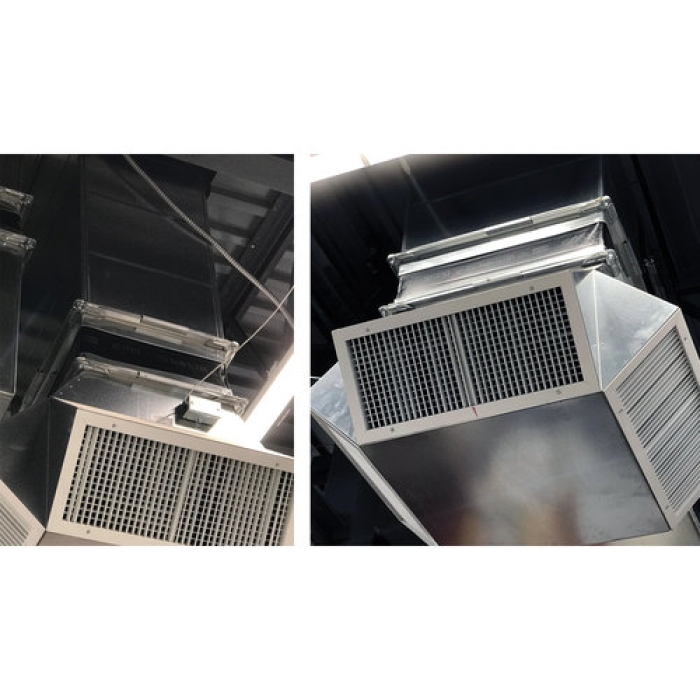

All air duct installations for heating, cooling or ventilation are attached to mechanical equipment containing a fan or blower. Vibrations, noises and rattles resulting from the operation of the fan or blower are transmitted into the metal ducts which carry the noises throughout the system. In order to isolate the vibration and noises to the source, an air-tight flexible joint, consisting of a fabric which is secured to sheet metal on both sides, must be inserted between the equipment and the ductwork. This flexible joint is called a "Flexible Duct Connector."

Duro Dyne® Metal Fab® Flexible Duct Connector, 100 ft Length, Neoprene/Stainless Steel, Material Gauge: 24 ga, 3 x 3 x 3 in

Select Duro Dyne Fabrics are designed to meet NFPA 701 (formerly UL 214.)
  • Select Duro Dyne fabrics are designed to meet NFPA 90A & 90 B. Refer to fabric chart for related ASTM E84 data.
  • All Duro Dyne Fabrics are airtight and waterproof.
  • Duro Dyne meets or exceeds the SMACNA steel requirements for flexible duct connector.
  • All Duro Dyne Flexible Duct Connector utilize 24 or 28 gauge galvanized steel meeting ASTM-A-525 G60.
  • Standard roll length - 100 ft.
  • Certain Connectors are available with 304 series or 316 series stainless steel or 3003-H14 series aluminum.
  • Flexible Duct Connector is manufactured in the United States for all markets and in the U.A.E. for Mid East and Overseas markets
    • Catalog https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Duro_Dyne_010232_Catalog.pdf
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Duro_Dyne_010232_Specification_Sheet.pdf
    • Submittal https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Duro_Dyne_010232_Submittal.pdf
