| Finish | : | Zinc-Plated |
| For Use With | : | WC2 or WC3 Wire Ropes |
| Function Type | : | Bracket Assembly |
| Load Capacity | : | 10 to 75 lb WC2, 25 to 150 lb WC3 |
| Material | : | Steel |
| Package Quantity | : | 100 Carton |
| Product Family | : | DYNA-TITE |
| Product Type | : | Bracket Assembly |

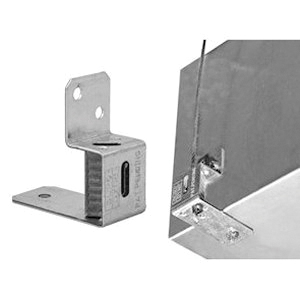

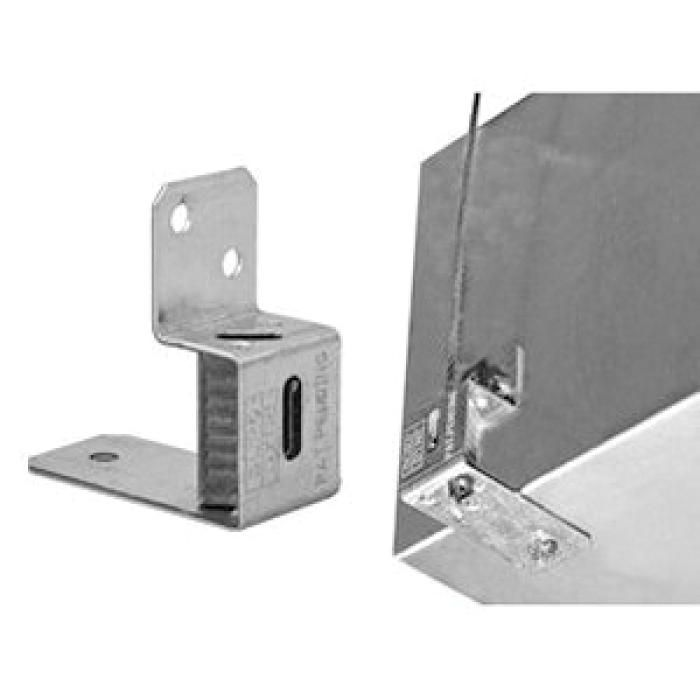

The KV bracket assembly enhances the Dyna-Tite suspension system by the addition of an integral bracket, which fastens the cable lock to rectangular ductwork with sheet metal screws. Once the KV assembly bracket is attached to the duct, the wire rope "drop" is passed into the entry hole at the top of the bracket, through the cable lock, and out the exit hole at the bottom. The locking teeth inside the cable lock engage the wire rope and secure the ductwork in place. An accessible release pin allows for simple adjustments.
Duro Dyne® DYNA-TITE KV Bracket Assembly, 10 to 75 lb WC2, 25 to 150 lb WC3 Load, Steel, Zinc-Plated, For Use With: WC2 or WC3 Wire Ropes
