| Function Type | : | Control Kit |
| Product Type | : | Control Kit |
| Voltage Rating | : | 120 V |

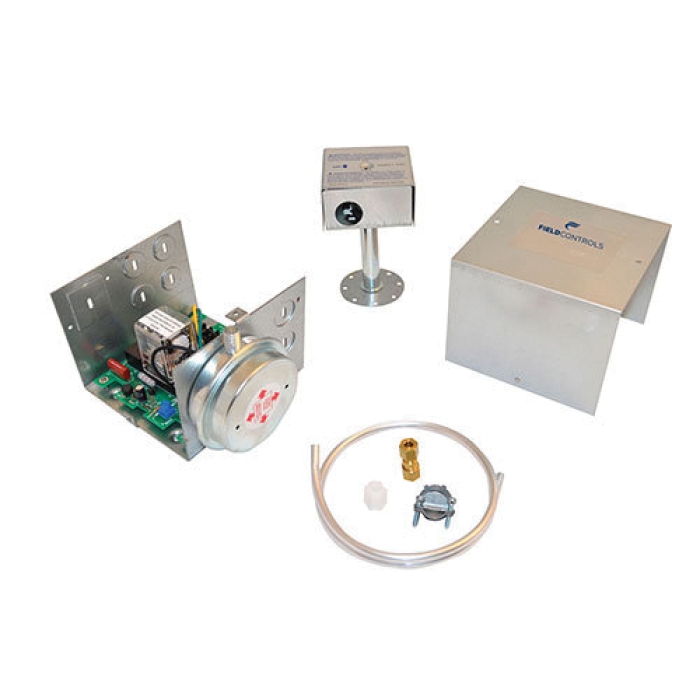

Field Controls System Control Kit, 120 V
- DRAFT PROVING SWITCH: Ensures the proper draft in the venting system
- SECONDARY SAFETY SWITCH: Acts as an additional layer of protection, ensuring that the appliance shuts down if any potential safety issues arise
- ADJUSTABLE ELECTRONIC POST PURGE: Improves the efficiency of the appliance
- CK Control Kits control the operation of SWG and CV Power Venters. CK Control Kits can also control the operation of Field Draft Inducers
- The CK-63 is used for all oil-fired systems, and may require optional delay oil valve for simultaneous burner operation
- Designed for use on SWG Series Power Vent Hoods for controlling oil fired heating appliances with 120 VAC controls
- The CK-63 control has the ability to operate the oil burner motor (up to 1⁄3 HP) and the venter at the same time
- This allows for shorter post purge time
- This feature requires the burner to be equipped with a delayed oil solenoid valve, which is not supplied with this kit.
- Control Kits are ETL approved accessories when used in conjunction with the SWG Power Venter
