Fieldpiece HS36 True RMS Digital Multimeter, LCD Display, 400 mV, 4000 mV, 40 V, 400 V, 600 V/0.1 mV VDC/Resolution

Fieldpiece HS36 True RMS Digital Multimeter, LCD Display, 400 mV, 4000 mV, 40 V, 400 V, 600 V/0.1 mV VDC/Resolution

Manufacturer: Fieldpiece Instruments
Brand: Fieldpiece
Part #: 28799
MPN: HS36
CPN:
Battery Life      :      300 hr
Battery Type      :      Alkaline
Capacitance Accuracy      :      +/-3 %
Capacitance Range / Resolution      :      400 uF, 0.1 uF
DC Amps Accuracy      :      +/-1 %
DC Amps Range / Resolution      :      400 uA, 4000 uA/0.1 uA
Display Type      :      LCD
Operating Temperature Rating      :      32 to 122 deg F
Product Type      :      Digital Multimeter
Resistance Accuracy      :      +/-1 to 3 %
Resistance Range / Resolution      :      400 Ohm, 4 kOhm, 40 kOhm, 400 kOhm, 4 MOhm, 40 MOhm/0.1 Ohm
UL Listed      :      Yes
VAC Accuracy      :      +/-1.2 to 2 %
VAC Measurement Range / Resolution      :      400 mV, 4 V, 40 V, 400 V, 600 V/0.1 mV
VDC Accuracy      :      +/-0.5 %
VDC Measurement Range / Resolution      :      400 mV, 4000 mV, 40 V, 400 V, 600 V/0.1 mV

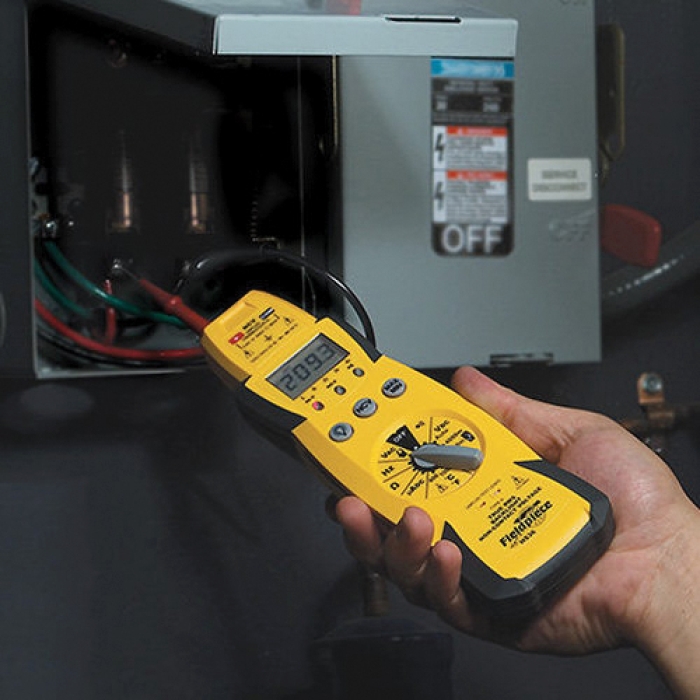

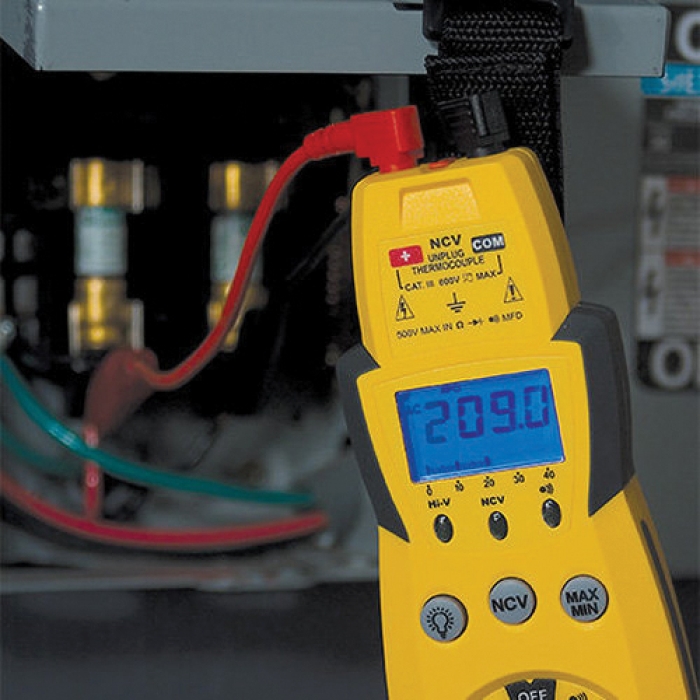

Our top of the line Stick Digital Multimeter, the HS36 includes the ranges you use everyday for HVACR field service plus includes a bright blue backlight and True RMS. Like the rest of the HS30 series, the HS36 comes equipped with a magnetic hanger, along with detachable silicone test leads and alligator clip probe tips for remote and easy one-handed testing, as well as the full set of built-in safety features. This auto-ranging stick meter also includes a bar graph on the LCD for an analog feel. Technicians who prefer our expandable stick meters tell us this is the best digital multimeter for HVACR field service.

Fieldpiece True RMS Digital Multimeter, LCD Display, 400 mV, 4000 mV, 40 V, 400 V, 600 V/0.1 mV VDC Measurement Range / Resolution, 400 mV, 4 V, 40 V, 400 V, 600 V/0.1 mV VAC Measurement Range / Resolution, 400 Ohm, 4 kOhm, 40 kOhm, 400 kOhm, 4 MOhm, 40 MOhm/0.1 Ohm Resistance Range / Resolution, Alkaline Battery, 300 hr Battery Life, VDC Accuracy: +/-0.5 %, VAC Accuracy: +/-1.2 to 2 %, +/-1 to 3 % Resistance Accuracy, 400 uF, 0.1 uF Capacitance Range / Resolution, +/-3 % Capacitance Accuracy, 400 uA, 4000 uA/0.1 uA DC Amps Range / Resolution, DC Amps Accuracy: +/-1 %

Works with all accessory heads
  • Non-contact voltage
  • MIicroamps DC for flame diodes
  • 400 AAC with included amp
  • Temperature up to 1000 degrees F
  • Lead storage
    • Owners/User Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Fieldpiece_HS36_Owners_User_Manual.pdf
