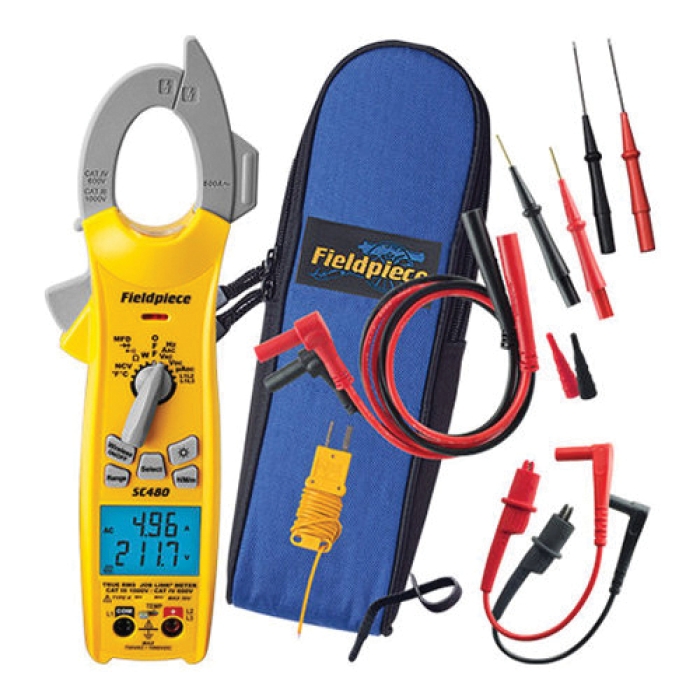

Manufacturer: Fieldpiece Instruments
Brand: Fieldpiece
Part #: 84052
MPN: SC480
CPN:
AC Amps Accuracy      :      +/-2 %
AC Amps Range / Resolution      :      100 A, 600 A/0.01 A
Battery Life      :      100 hr
Battery Type      :      Alkaline
Capacitance Accuracy      :      +/-3 to 5 %
Capacitance Range / Resolution      :      10 nF, 100 nF, 1000 nF, 10 uF, 100 uF, 1000 uF, 10 mF, 0.01 nF
DC Amps Accuracy      :      +/-1 %
DC Amps Range / Resolution      :      1000 uA/0.1 uA
Depth      :      48 mm
Display Counts      :      10000
Height      :      247 mm
Operating Temperature Rating      :      32 to 122 deg F
Product Family      :      Job Link®
Product Type      :      Power Clamp Meter
Product Weight      :      345 g
Resistance Accuracy      :      +/-1 to 3 %
Resistance Range / Resolution      :      100 Ohm, 1000 Ohm, 10 kOhm, 100 kOhm, 1000 kOhm, 10 MOhm, 50 MOhm/0.01 Ohm
UL Listed      :      Yes
VAC Accuracy      :      +/-1.5 to 2 %
VAC Measurement Range / Resolution      :      1000 mV, 10 V, 100 V, 750 V/0.1 mV
VDC Accuracy      :      +/-0.5 %
VDC Measurement Range / Resolution      :      1000 mV, 10 V, 100 V, 1000 V/0.1 mV
Width      :      79 mm

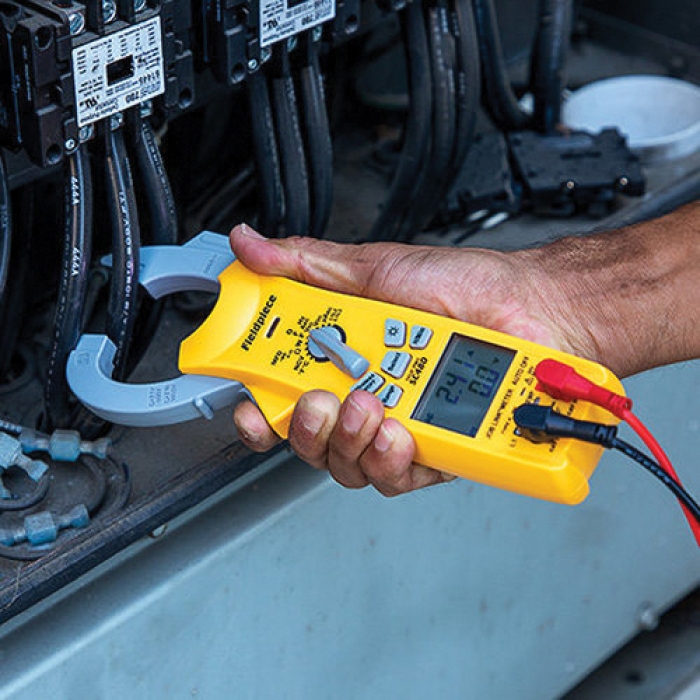

Test HVACR electrical equipment using phase rotation, True RMS, and Inrush features. Plus connect directly with the Job Link® System app to document electrical measurements.

Fieldpiece Job Link® Power Clamp Meter, 10000 Display Counts, 1000 mV, 10 V, 100 V, 1000 V/0.1 mV VDC Measurement Range / Resolution, 1000 mV, 10 V, 100 V, 750 V/0.1 mV VAC Measurement Range / Resolution, 100 Ohm, 1000 Ohm, 10 kOhm, 100 kOhm, 1000 kOhm, 10 MOhm, 50 MOhm/0.01 Ohm Resistance Range / Resolution, Alkaline Battery, 100 hr Battery Life, 247 mm Height, 79 mm Width, 48 mm Depth, VDC Accuracy: +/-0.5 %, VAC Accuracy: +/-1.5 to 2 %, +/-1 to 3 % Resistance Accuracy, 10 nF, 100 nF, 1000 nF, 10 uF, 100 uF, 1000 uF, 10 mF, 0.01 nF Capacitance Range / Resolution, +/-3 to 5 % Capacitance Accuracy, AC Amps Range / Resolution: 100 A, 600 A/0.01 A, AC Amps Accuracy: +/-2 %, 1000 uA/0.1 uA DC Amps Range / Resolution, DC Amps Accuracy: +/-1 %, 32 to 122 deg F Operating Temperature, UL Listed: Yes

Wireless direct to Job Link® System for electrical documentation
  • Low Pass Filter for VFD systems
  • Molex test leads for small circuitry
  • Test 3-phase with two leads
  • Safety rated CAT IV - 600V/CAT III - 1000V
    • Owners/User Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Fieldpiece_SC480_Owners_User_Manual.pdf
