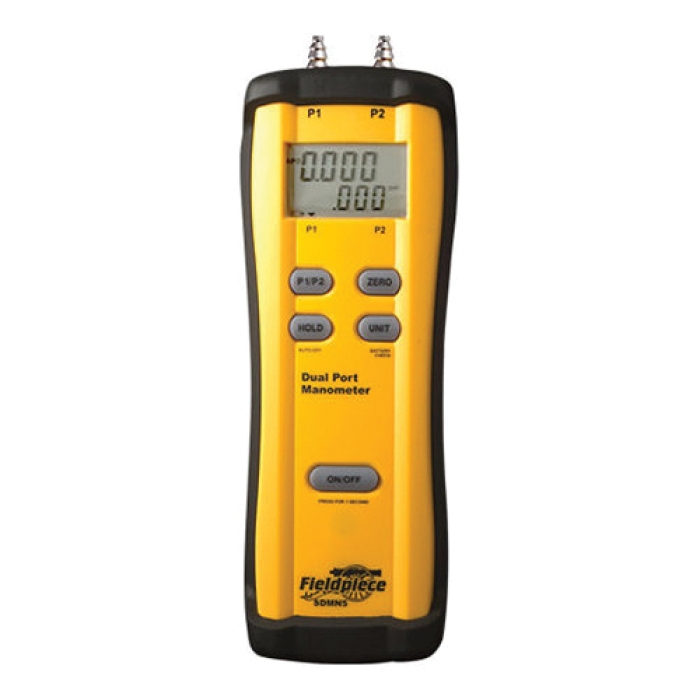

Fieldpiece SDMN5 Dual Port Differential Manometer, 0 to 0.07 psi, +/-0.001 psi Accuracy, 0.01 in-WC Resolution, Alkaline
Fieldpiece SDMN5 Dual Port Differential Manometer, 0 to 0.07 psi, +/-0.001 psi Accuracy, 0.01 in-WC Resolution, Alkaline
| Battery Life | : | 200 hr |
| Battery Type | : | Alkaline |
| Depth | : | 30 mm |
| Height | : | 180 mm |
| Pressure Accuracy | : | +/-0.001 psi |
| Pressure Range | : | 0 to 0.07 psi |
| Product Type | : | Differential Manometer |
| Product Weight | : | 195 g |
| Resolution | : | 0.01 in-WC |
| Width | : | 60 mm |
The SDMN5 is a portable, rugged dual-port manometer designed especially for HVACR field service technicians. Measures gas pressure, static pressure and pressure differential. The SDMN5 includes a zero adjust button of the face of the meter, a rugged rubber boot, a magnet on the back for hanging the meter during service, and the Auto Power-Off (APO) function conserves battery life. The SDMN5 measures pressure between -60inWC and 60inWC (inches of water column) and -150.0 to 150.0 mBar. The SDMN5 also measures P1 or P2 pressure readings and calculates the difference between P1 and P2. Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar. Includes 3/16" to 5/16" adapter for measuring gas inlet and outlet pressures.
Fieldpiece Dual Port Differential Manometer, +/-0.001 psi Pressure Accuracy, 0.01 in-WC Resolution, Alkaline Battery, 200 hr Battery Life, 180 mm Height, 60 mm Width, 30 mm Depth
