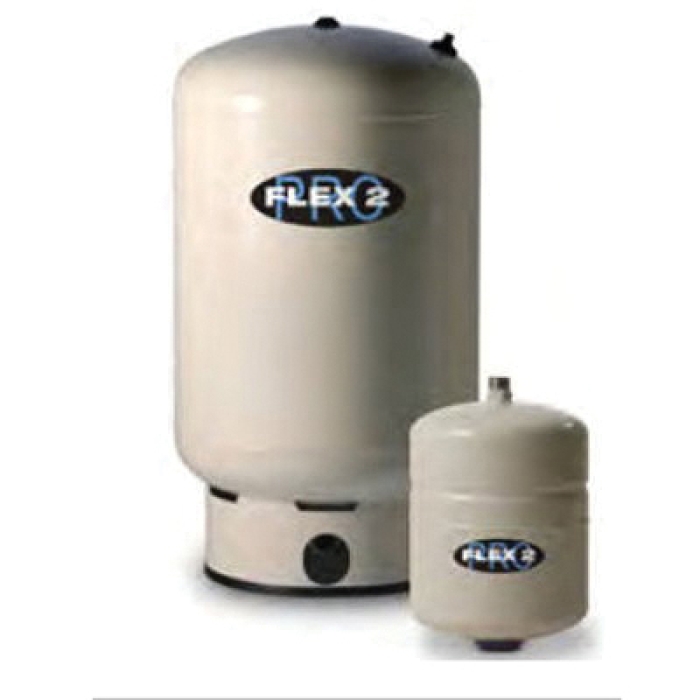

FLEXCON PH-5 Thermal Expansion Tank, 2.1 gal, 3/4 in x MNPT, Steel Body, Butyl Rubber Diaphragm, 8 in Dia, 11.6 in L
FLEXCON PH-5 Thermal Expansion Tank, 2.1 gal, 3/4 in x MNPT, Steel Body, Butyl Rubber Diaphragm, 8 in Dia, 11.6 in L
| Acceptance Volume | : | 1 gal |
| Body Material | : | Steel |
| Capacity | : | 2.1 gal |
| Connection Size | : | 3/4 in |
| Connection Type | : | MNPT |
| Diameter | : | 8 in |
| Diaphragm Material | : | Butyl Rubber |
| Function Type | : | Expansion Tank |
| Length | : | 11.6 in |
| Maximum Working Pressure | : | 150 psi |
| NSF Certified | : | Yes |
| Product Weight | : | 5 lb |
The PH series eliminates the problem of nuisance cycling of the safety relief valve when a backflow preventer or check valve is present in a domestic hot water system. Utilizing Flexcon's all butyl diaphragm system, they provide a reservoir for expanded water volume and help to prevent dangerous over-pressurization. The diaphragm is permanently separated from the tanks air charge. The PH tanks also feature a stainless steel system connection for maximum corrosion resistance.
FLEXCON Thermal Expansion Tank, 2.1 gal Capacity, 3/4 in Connection, MNPT Connection, Steel Body, Butyl Rubber Diaphragm, 150 psi Maximum Working Pressure, 1 gal Acceptance Volume, 8 in Diameter, 11.6 in Length, NSF Certified: Yes
