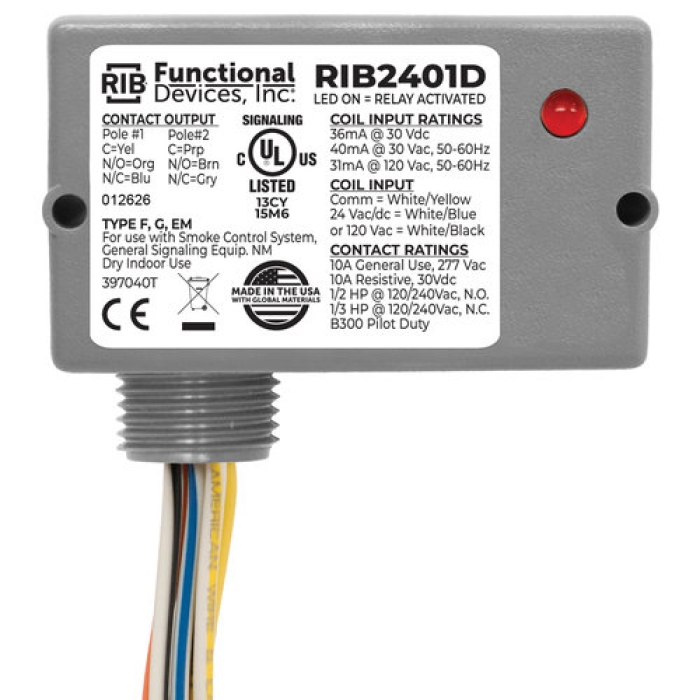

Functional Devices™ RIB2401D Enclosed Relay, 24 V, 120 V Control, DPDT, 24 V, 120 V Switching Voltage, Wired, 1.7 in H
Functional Devices™ RIB2401D Enclosed Relay, 24 V, 120 V Control, DPDT, 24 V, 120 V Switching Voltage, Wired, 1.7 in H
| Contact Configuration | : | DPDT |
| Control Voltage | : | 24 V, 120 V |
| Depth | : | 1-1/2 in |
| Electrical Connection Type | : | Wired |
| Function Type | : | Enclosed Relay |
| Height | : | 1.7 in |
| NEMA Enclosure Type | : | NEMA 1 |
| Operating Temperature Rating | : | -30 to 140 deg F |
| Product Type | : | Enclosed Relay |
| Product Weight | : | 0.336 lb |
| Switching Current | : | 10 A |
| Switching Voltage | : | 24 V, 120 V |
| Time Delay | : | 8 ms |
| UL Listed | : | Yes |
| Width | : | 2.8 in |
As one of our most compact Pilot Relay solutions, the RIB2401D is suitable for a dynamic assortment of applications. When you install this rugged component into an electrical system, there is no question that it will perform up to expectations. It's durable, easy to install, and capable of adapting to a wide range of physical conditions, including extreme temperatures.
Functional Devices™ Enclosed Relay, 24 V, 120 V Control, Contact Configuration: DPDT, 24 V, 120 V Switching, 10 A Switching Current, Wired Electrical Connection, NEMA 1 NEMA Enclosure Type, 8 ms Time Delay, 1.7 in Height, 2.8 in Width, 1-1/2 in Depth, -30 to 140 deg F Operating Temperature, UL Listed: Yes
