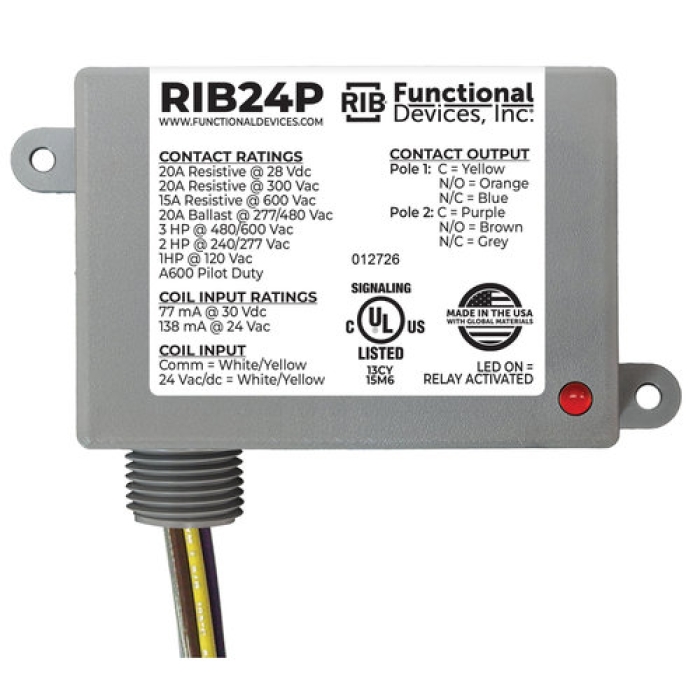

Functional Devices™ RIB24P Enclosed Relay, 24 V Control, DPDT, 24 V Switching Voltage, 20 A Switching Current, Wired
Functional Devices™ RIB24P Enclosed Relay, 24 V Control, DPDT, 24 V Switching Voltage, 20 A Switching Current, Wired
| Contact Configuration | : | DPDT |
| Control Voltage | : | 24 V |
| Depth | : | 1.81 in |
| Electrical Connection Type | : | Wired |
| Function Type | : | Enclosed Relay |
| Height | : | 2.39 in |
| NEMA Enclosure Type | : | NEMA 1 |
| Operating Temperature Rating | : | -30 to 140 deg F |
| Product Type | : | Enclosed Relay |
| Product Weight | : | 0.724 lb |
| Switching Current | : | 20 A |
| Switching Voltage | : | 24 V |
| Time Delay | : | 18 ms |
| UL Listed | : | Yes |
| Width | : | 3.31 in |
The RIB24P Power Relay is designed to provide reliable operation in robust systems. The relay features a 20 Amp DPDT configuration, making the part a good fit for several different switching applications. The RIB24P operates with a 24 VAC/DC coil, providing compatibility with a broad mix of control voltages. It's also enclosed in a NEMA 1 housing, which can withstand challenging environments.
Functional Devices™ Enclosed Relay, 24 V Control, Contact Configuration: DPDT, 24 V Switching, 20 A Switching Current, Wired Electrical Connection, NEMA 1 NEMA Enclosure Type, 18 ms Time Delay, 2.39 in Height, 3.31 in Width, 1.81 in Depth, -30 to 140 deg F Operating Temperature, UL Listed: Yes
