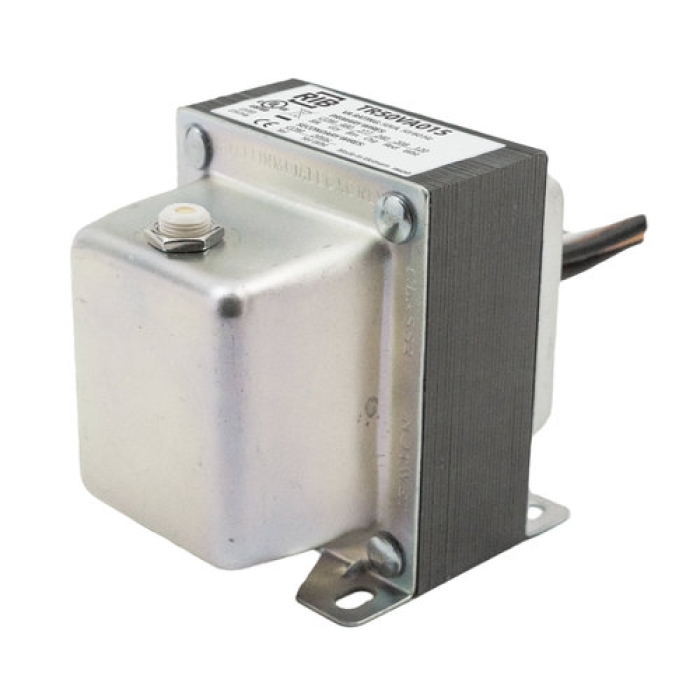

Functional Devices™ RIBTR50VA015 Transformer, 120/208/240/277/480 V Primary, 24 V Secondary, 50 VA, 50/60 Hz, 1 ph
Functional Devices™ RIBTR50VA015 Transformer, 120/208/240/277/480 V Primary, 24 V Secondary, 50 VA, 50/60 Hz, 1 ph
| Depth | : | 3.013 in |
| Electrical Connection Type | : | Wired |
| Frequency | : | 50/60 Hz |
| Function Type | : | Transformer |
| Height | : | 3.405 in |
| Installation / Mounting Type | : | Foot, Single Threaded Hub |
| Operating Temperature Rating | : | -30 to 140 deg F |
| Phase | : | 1 ph |
| Product Weight | : | 2.844 lb |
| UL Listed | : | Yes |
| VA Rating | : | 50 VA |
| Voltage Rating | : | 120/208/240/277/480 V Primary, 24 V Secondary |
| Width | : | 2.517 in |
The TR50VA015 Transformer serves as an essential component for efficient and reliable power management. With a 50VA capacity, it's designed to accommodate an array of input voltages to a stable 24 VAC output. The TR50VA015 makes the unit suitable for a range of use cases. The inclusion of a circuit breaker in its design supports safety by protecting against overloads.
Functional Devices™ Transformer, 120/208/240/277/480 V Primary, 24 V Secondary, VA Rating: 50 VA, 50/60 Hz Frequency, 1 ph Phase, Foot, Single Threaded Hub Installation / Mounting, Wired Electrical Connection, 3.405 in Height, 2.517 in Width, 3.013 in Depth, -30 to 140 deg F Operating Temperature, UL Listed: Yes
