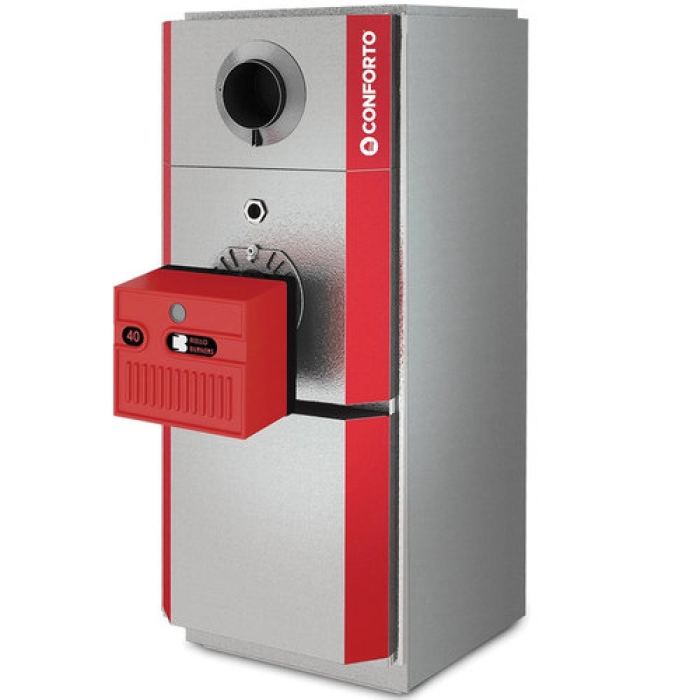

GRANBY Conforto KHM Series KHM-00-G100-03 Furnace, 105000 Btu Input Heating BTU, 91000 Btu Output Heating BTU, Oil Fuel

GRANBY Conforto KHM Series KHM-00-G100-03 Furnace, 105000 Btu Input Heating BTU, 91000 Btu Output Heating BTU, Oil Fuel

Manufacturer: TerraVest Industries Inc
Brand: GRANBY
Part #: 63010
MPN: KHM-00-G100-03
CPN:
AFUE      :      86 to 86.9 %
Air Flow Direction      :      Downflow, Horizontal Left, Horizontal Right, Multi-Poise, Upflow
BTU Heating Input      :      105000 Btu
BTU Heating Output      :      91000 Btu
CFM Airflow      :      1230 cfm
Depth      :      26 in
Energy Star Certified      :      Yes
Fuel Type      :      Oil
Height      :      46-1/4 in
Ignition Type      :      Electronic
MBH      :      105 mbh
Model Number      :      KHM-100
Motor Type      :      PSC
Product Family      :      Conforto KHM Series
Vent Type      :      Direct
Width      :      21-7/16 in

Conforto Hiboy furnace stands out in the market as the best-performing unit, thanks to its non-refractory combustion chamber combined with large surface triple-pass heat exchangers, which ensures the highest heating efficiency. This innovative design provides a faster warm-up and cool-down period of the heat exchanger for a more rapid, precise response to thermostat calls for heat without overshooting the thermostat setpoint as do conventional refractory lined combustion chamber oil furnace designs. With its 4-way multi-position installation capability, no additional components are needed. Moreover, the furnace offers the convenience of standard chimney venting or optional direct vent balanced flue venting, making it a versatile and efficient heating solution for various settings.

GRANBY Conforto Furnace, 91000 Btu Heating Output, 86 to 86.9 % AFUE, Oil Fuel, Direct Vent, Downflow, Horizontal Left, Horizontal Right, Multi-Poise, Upflow Air Flow Direction, 1230 cfm, PSC Motor, 21-7/16 in Width, 46-1/4 in Height, 26 in Depth, 105 mbh, Electronic Ignition, Energy Star Certified: Yes, Product Family: KHM Series

Up to 88.6% AFUE, the most efficient oil-fired furnace on the market
  • Gas-fired field retrofittable using listed forced draft gas-fired burners
  • Implement European design for a modern and sophisticated appearance
  • Low internal pressure triple-pass heat exchanger design helps maintain a clean combustion
  • Boast superior durability, offering long-lasting performance
  • Facilitate easier servicing for added convenience and peace of mind
    • Instruction/Installation Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/GRANBY_KHM_00_G100_03_Instruction_Installation_Manual.pdf
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/GRANBY_KHM_00_G100_03_Specification_Sheet.pdf
    • Submittal https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/GRANBY_KHM_00_G100_03_Submittal.pdf
    • Warranty Information https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/GRANBY_KHM_00_G100_03_Warranty_Information.pdf
