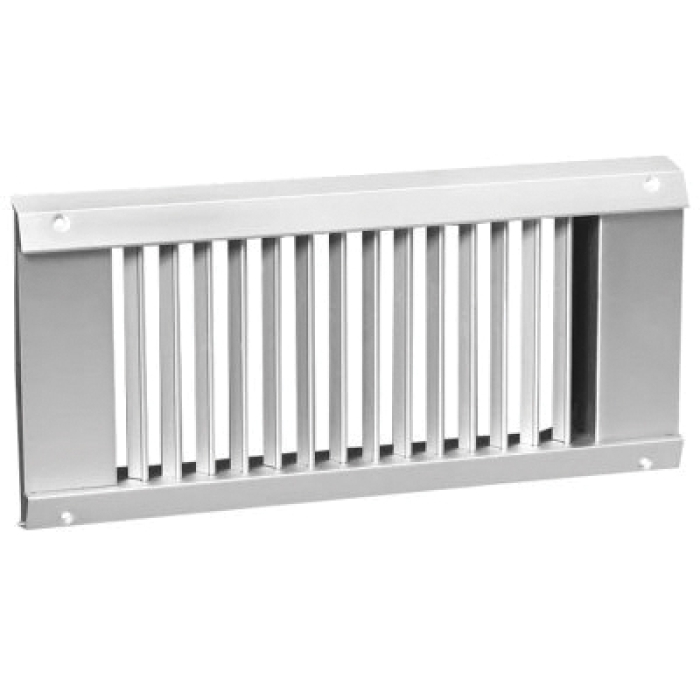

Hart & Cooley® USV Series 558491 Universal Diffuser, For Duct Size: 12 x 4 in, Spiral Duct, Single Deflection
Hart & Cooley® USV Series 558491 Universal Diffuser, For Duct Size: 12 x 4 in, Spiral Duct, Single Deflection

Hart & Cooley® USV Series 558491 Universal Diffuser, For Duct Size: 12 x 4 in, Spiral Duct, Single Deflection

Hart & Cooley® USV Series 558491 Universal Diffuser, For Duct Size: 12 x 4 in, Spiral Duct, Single Deflection

Manufacturer: Duravent Group
Brand: Hart & Cooley®
Part #: 70772
MPN: 558491
CPN:
Adjustable      :      Yes
CFM Airflow      :      300 cfm
Deflection Type      :      Single
Depth      :      1-5/8 in
Duct Shape      :      Spiral
Finish      :      Satin Anodized
For Duct Size      :      12 x 4 in
Height      :      15-1/4 in
Material      :      Aluminum
Product Family      :      USV Series
Product Type      :      Universal Diffuser
Width      :      5-1/4 in

Hart & Cooley® Universal Diffuser, For Duct Size: 12 x 4 in, Spiral Duct, Single Deflection, Aluminum, Satin Anodized, 15-1/4 in Height, 5-1/4 in Width, 1-5/8 in Depth, 300 cfm, Adjustable: Yes, Product Family: USV Series

Single row of individually adjustable vertical blades for horizontal air deflection control
  • Optional face adjustable scoop to direct airflow
  • Counter-sunk screw holes
  • Fits duct sizes 10 in on up, based on diffuser height
    • Full Engineering Drawing https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Hart_Cooley_558491_Full_Engineering_Drawing.pdf
    • Submittal https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Hart_Cooley_558491_Submittal.pdf
