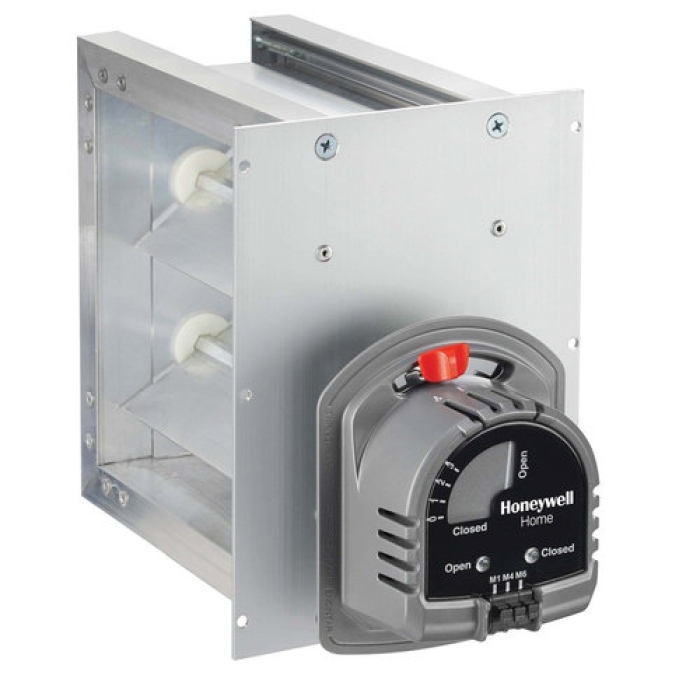

Honeywell Home ZD Series ZD24X10TZ/U Parallel Blade Damper, 24 V, Power Close and Spring Open, 1 in-WC Maximum Static
Honeywell Home ZD Series ZD24X10TZ/U Parallel Blade Damper, 24 V, Power Close and Spring Open, 1 in-WC Maximum Static
Manufacturer: Resideo Technologies Inc
Brand: Honeywell Home
Part #: 69927
MPN: ZD24X10TZ/U
CPN:
| Actuator Type | : | Power Close and Spring Open |
| Close Time | : | 10 s |
| Depth | : | 4 in |
| For Use With | : | TrueZONE® and Other Electronic Zoning Systems |
| Function Type | : | Blade Damper |
| Length | : | 10 in |
| Material | : | Aluminum |
| Maximum Static Pressure | : | 1 in-WC |
| Open Time | : | 30 s |
| Power Consumption | : | 8 VA |
| Product Family | : | ZD Series |
| Voltage Rating | : | 24 V |
| Width | : | 24 in |
This easy-to-wire damper includes a 24-volt motor used to control circulating air in HVAC systems. The ZD is a power close and spring open damper used when a normally-open damper is required. It's typically used with TrueZONE® and other electronic zoning systems.
Honeywell Home Parallel Blade Damper, 24 V, Power Close and Spring Open Actuator, 1 in-WC Maximum Static Pressure, 30 s Open Time, 10 s Close Time, 10 in Length, 24 in Width, 4 in Depth, Aluminum, For Use With: TrueZONE® and Other Electronic Zoning Systems, 8 VA Power Consumption
Taping flange and non-interfering set screwHigh temperature outer plastic for hot environments Redesigned all metal drive train gears Front facing display with LED Indication light for open and close Adjustable damper position range stops Can be mounted on the side or bottom of the duct, as the application requires. (Actuator mounted on second damper dimension listed.) Quiet operation
