| Connection Size | : | 1/4 in |
| Finish | : | Nickel-Plated |
| Function Type | : | Valve Core |
| Installation Torque | : | 3 to 5 in-lb |
| Material | : | Brass |
| Maximum Working Pressure | : | 800 psi |
| Package Quantity | : | 25 Pack |
| Packaged Depth | : | 0.88 in |
| Packaged Height | : | 5.25 in |
| Packaged Width | : | 2.38 in |
| Product Type | : | Valve Core |
| Shipping Weight | : | 0.06 lb |

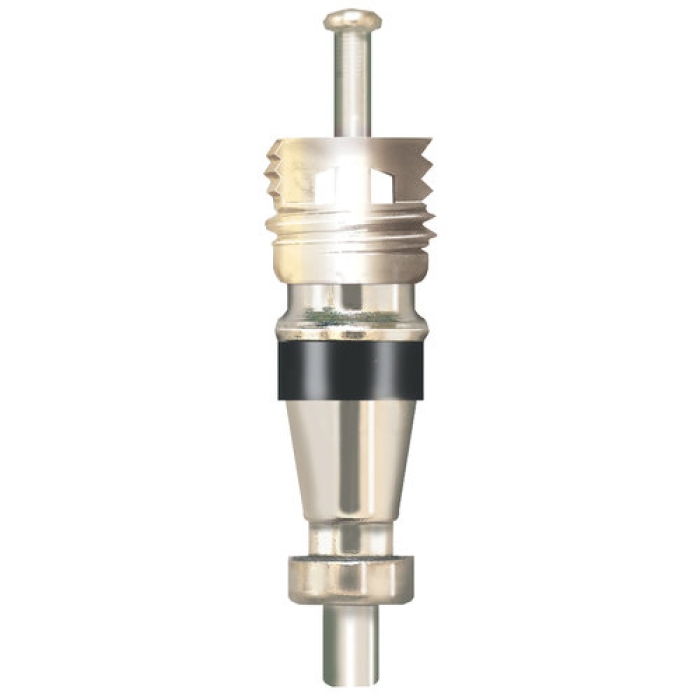

JB Industries Valve Core, 1/4 in Connection, Brass, 800 psi Maximum Working Pressure, Nickel-Plated, 3 to 5 in-lb Installation Torque
Positive stop valve core for A/C system valvesOperating pressure 800 psi Continuous operating temp -20 deg to 220 deg F (-28 deg to 104 deg C) Nickel plated brass PTFE barrel gasket seal Neoprene cup washer Installation torque 3 to 5 in/lbs Valve Core Compatible Core Chambers: ISO standard 7442 T&R Standard Bore Chamber No. 1 AHRI Standard 720
