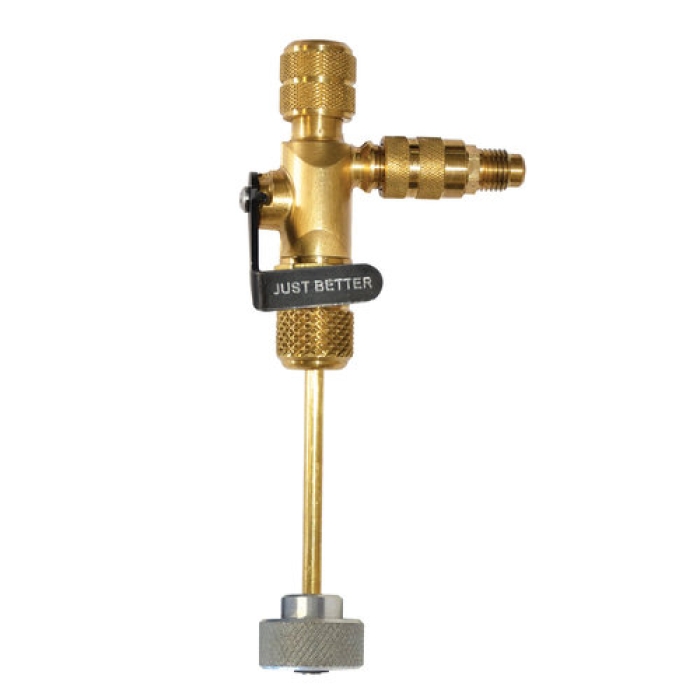

JB Industries A32525SVT Vacuum-Rated Valve Core Removal Tool With Slide Valve Side Port and Torque Setting, 1/4 x 1/4 in
JB Industries A32525SVT Vacuum-Rated Valve Core Removal Tool With Slide Valve Side Port and Torque Setting, 1/4 x 1/4 in
Manufacturer: JB Industries
Brand: JB Industries
Part #: 88908
MPN: A32525SVT
CPN:
| Body Material | : | Brass |
| Connection Size | : | 1/4 x 1/4 in |
| Package Quantity | : | 1 Pack |
| Packaged Depth | : | 2.25 in |
| Packaged Height | : | 4.5 in |
| Packaged Width | : | 3.25 in |
| Product Type | : | Removal Tool |
| Shipping Weight | : | 0.52 lb |
JB Industries Vacuum-Rated Valve Core Removal Tool, 1/4 x 1/4 in Connection, Brass Body
Designed with the daily job of technicians in mind - The A32525SVT* valve core removal tool utilizes an additional slide valve side port to accommodate a vacuum gauge.Primary function is to remove and replace the valve core under pressure and/or to remove valve cores in refrigeration systems to increase evacuation and charging performance. Swap out damaged valve cores under pressurized air conditioning and refrigeration systems for much faster evacuation Slide valve side port valve provides an excellent location to attach a vacuum gauge so system can be checked for absence of moisture and air Slide valve side port provides an easy open/close so vacuum gauge can be removed without the introduction of air into the system before charging Protect sensitive vacuum gauge sensors when left on during the charging process by closing slide valve side port In-line actuated handle with the valve allowing the contractor to open and close the valve in tight areas with a single finger Uses a series of o-rings and precision machining to stay sealed and not leak during evacuation Solid brass construction with the tip machined from A2 tool steel extends product life A32525SVT automatically sets torque 3 to 5 in-lb
