KLEIN TOOLS® CL490 Dual Display Auto-Ranging AC/DC Current TRMS Clamp, 600 V Maximum, LCD Display, Battery, 1.6 in Jaw
KLEIN TOOLS® CL490 Dual Display Auto-Ranging AC/DC Current TRMS Clamp, 600 V Maximum, LCD Display, Battery, 1.6 in Jaw

KLEIN TOOLS® CL490 Dual Display Auto-Ranging AC/DC Current TRMS Clamp, 600 V Maximum, LCD Display, Battery, 1.6 in Jaw

KLEIN TOOLS® CL490 Dual Display Auto-Ranging AC/DC Current TRMS Clamp, 600 V Maximum, LCD Display, Battery, 1.6 in Jaw

Manufacturer: Klein Tools, Inc
Brand: KLEIN TOOLS®
Part #: 98282
MPN: CL490
CPN:
Battery Type      :      Lithium-Ion
Depth      :      1-1/2 in
Display Counts      :      4000
Display Type      :      LCD
Height      :      8.46 in
Jaw Capacity      :      1.6 in
Maximum Voltage      :      600 V
Operating Temperature Rating      :      -40 to 1832 deg F
Power Source      :      Battery
Product Type      :      TRMS Clamp
Resistance Range / Resolution      :      40 mOhm
UL Listed      :      Yes
VAC Measurement Range / Resolution      :      600 V
VDC Measurement Range / Resolution      :      600 V
Width      :      3.54 in

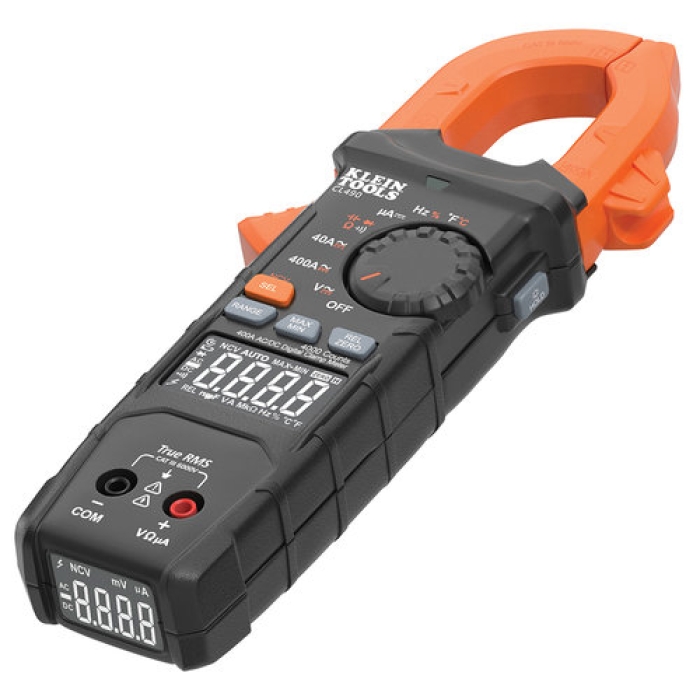

Klein Tools CL490 Dual Display Clamp Meter is auto-ranging for precise measurements with a secondary display for easier viewing in tight spaces. The meter reads AC/DC current, voltage, resistance, continuity,frequency, and capacitance; all with True RMS accuracy. It features diode testing and temperature is taken, via thermocouple. There is NCV detection with audio-visual alerts for additional functional applications. To ensure visibility in any lighting, there is a backlit and hi-vis display.

KLEIN TOOLS® Dual Display Auto-Ranging AC/DC Current TRMS Clamp, 600 V Maximum Voltage, LCD Display, Battery Power Source, 1.6 in Jaw, 4000 Display Counts, 600 V VDC Measurement Range / Resolution, 600 V VAC Measurement Range / Resolution, 40 mOhm Resistance Range / Resolution, Lithium-Ion Battery, 8.46 in Height, 3.54 in Width, 1-1/2 in Depth, -40 to 1832 deg F Operating Temperature, UL Listed: Yes

Dual Display digital clamp meter allows users to see readings in tight space areas
  • AC/DC clamp meter with True RMS provides accurate and reliable measurements across various applications
  • Measures AC/DC current and NCVT via clamp; AC/DC voltage, resistance, continuity, frequency/duty cycle, DC microamps, diode test and capacitance via test leads; temperature via thermocouple
  • Backlit reverse-contrast LCDs for clear data and best view-ability in all environments
  • Withstands drops from 6.6 feet (2 m), and includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 2 x AA batteries
  • Ergonomic design provides a comfortable grip, with easy dial adjustment using the thumb
  • Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
  • Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
    • Catalog https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/KLEIN_TOOLS_CL490_Catalog.pdf
    • Instruction/Installation Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/KLEIN_TOOLS_CL490_Instruction_Installation_Manual.pdf
    • SDS https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/KLEIN_TOOLS_CL490_SDS.pdf
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/KLEIN_TOOLS_CL490_Specification_Sheet.pdf
