| Base Length | : | 11 in |
| Base Width | : | 8 in |
| For Pipe Size | : | 2 in |
| Height | : | 2-1/2 in |
| Material | : | EPDM |
| Roof Pitch | : | 1/12 to 12/12 |

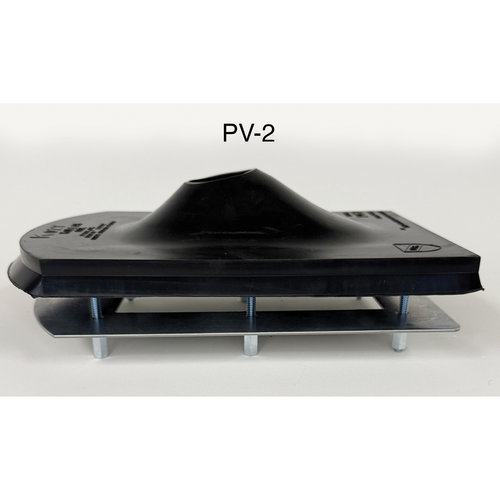

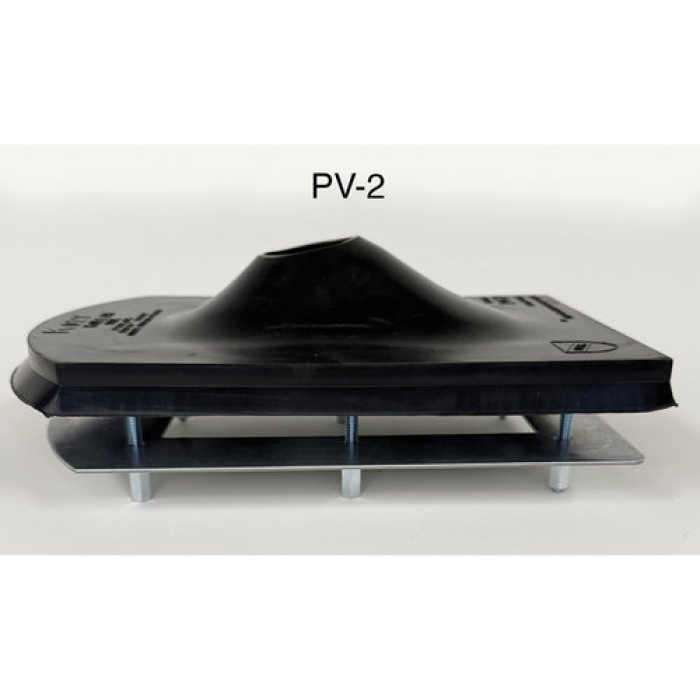

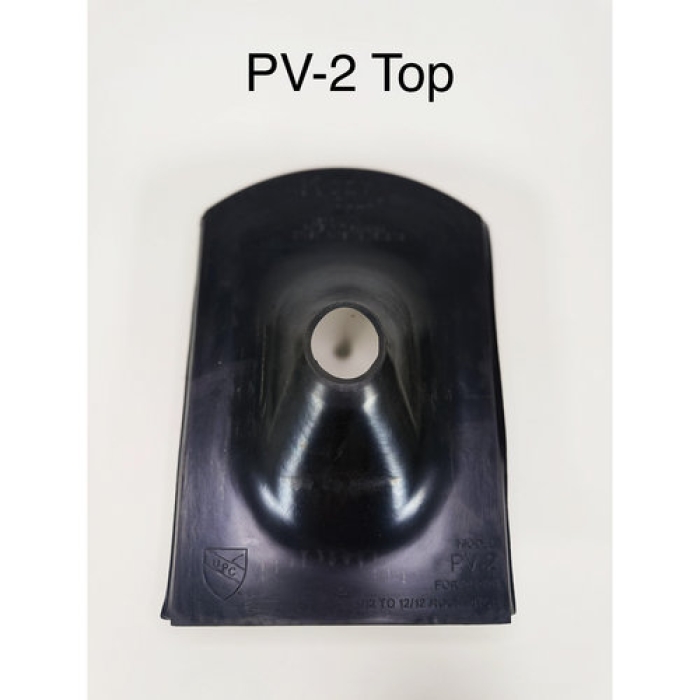

Kozy Kollar Roof Flashing Kit, EPDM, 11 in Base Length, 8 in Base Width, 2-1/2 in Height, 1/12 to 12/12 Roof Pitch
3'' and 2'' Kozy Kollar EPDM rubber roof flange with heat resistance to 180 degrees Fahrenheit. Molded around a .125 steel Main Fame with six casehardened 1⁄4-20 female stand-offs installedTwo plated 1.5'' x 10.25'' x .104'' Lower Mounting Plates Six 1/4-20 x 2-1/2 in plated studs Six 1/4-20 x 7/8 in plated couplings torqued to 3 foot pounds 1.5 oz tube of Permatex 2-A Roof Slope - 1/12 pitch to 12/12 pitch Allowable Roof materials: three tab conventional shingles, architectural shingle, metal roof with solid substrate, and rolled roofing with solid substrate
