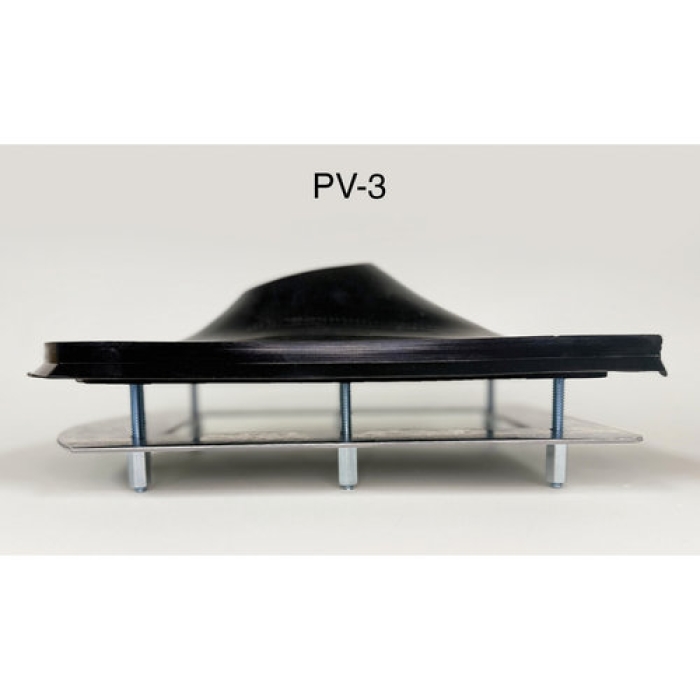

Kozy Kollar PV-3 Roof Flashing Kit, For Pipe Size: 3 in, EPDM, 11 in L Base, 8 in W Base, 2-1/2 in H

Base Length	:	11 in
Base Width	:	8 in
For Pipe Size	:	3 in
Height	:	2-1/2 in
Material	:	EPDM
Roof Pitch	:	1/12 to 12/12

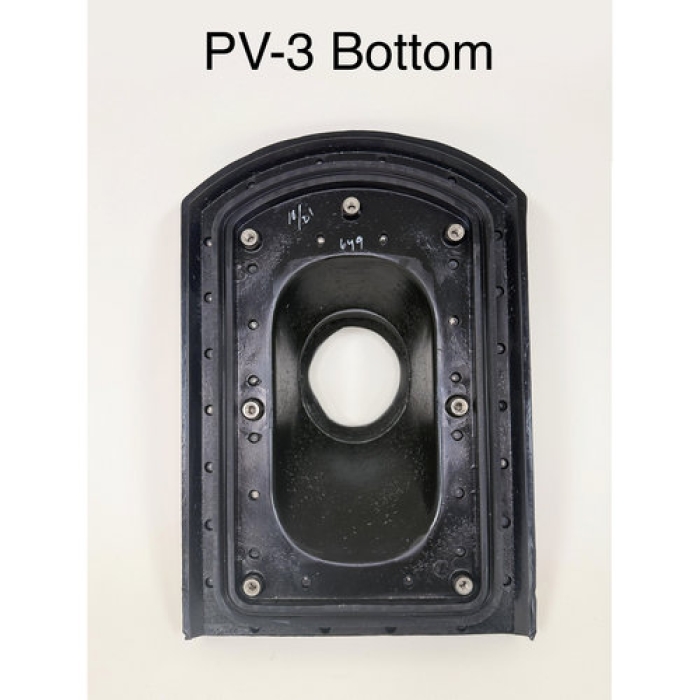

3'' and 2'' Kozy Kollar EPDM rubber roof flange with heat resistance to 180 degrees Fahrenheit. Molded around a .125 steel Main Fame with six casehardened 1⁄4-20 female stand-offs installed

Two plated 1.5'' x 10.25'' x .104'' Lower Mounting Plates

Six 1/4-20 x 2-1/2 in plated studs

Six 1/4-20 x 7/8 in plated couplings torqued to 3 foot pounds

1.5 oz tube of Permatex 2-A

Roof Slope - 1/12 pitch to 12/12 pitch

Allowable Roof materials: three tab conventional shingles, architectural shingle, metal roof with solid substrate, and rolled roofing with solid substrate
