Kozy Kollar PV-4 Roof Flashing Kit, For Pipe Size: 4 in, EPDM, 12-3/4 in L Base, 9-1/4 in W Base, 2-1/2 in H

Base Length	:	12-3/4 in
Base Width	:	9-1/4 in
For Pipe Size	:	4 in

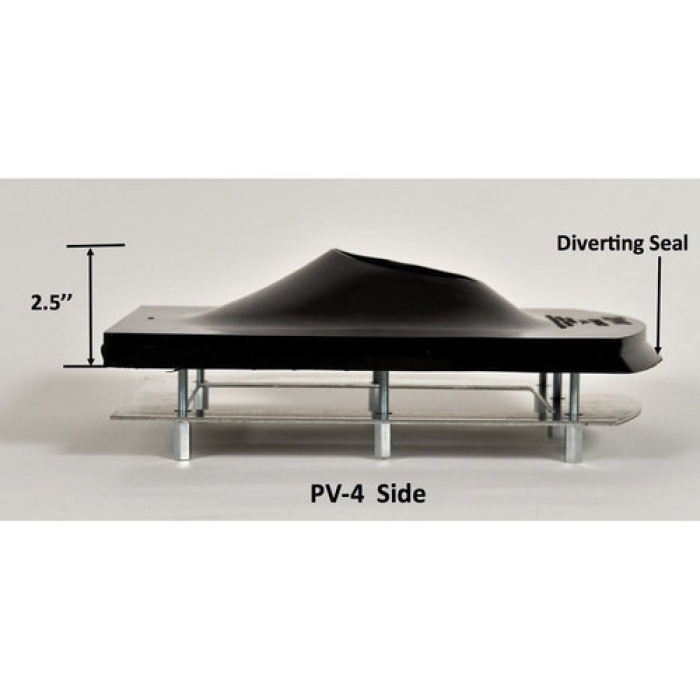

Height	:	2-1/2 in
Material	:	EPDM
Roof Pitch	:	1/12 to 12/12

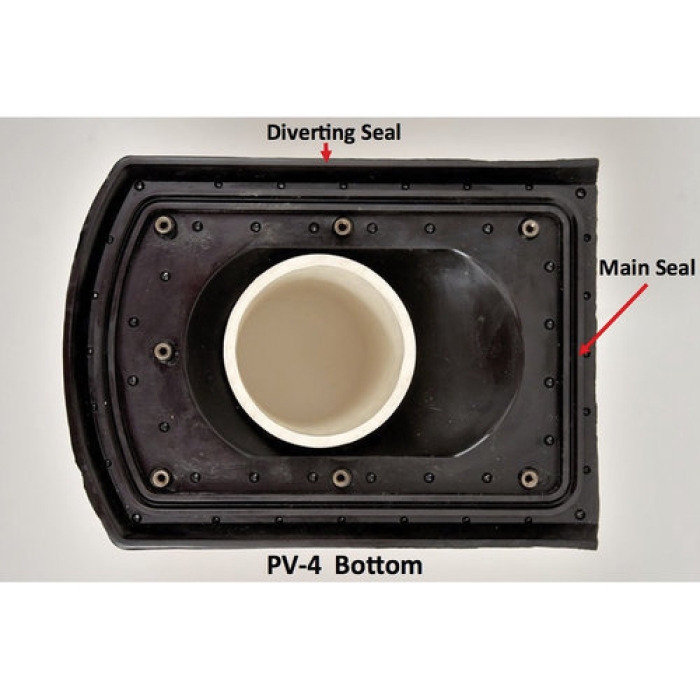

4'' Kozy Kollar EPDM rubber roof flange with heat resistance to 180 degrees Fahrenheit. Molded around a .125 steel Main Fame with seven casehardened 1⁄4-20 female standoffs installed

0.105 in plated sub frame

Seven 1/4-20 x 2-1/2 in plated studs

Seven 1/4-20 x 7/8 in plated couplings torqued to 3 foot pounds

1.5 oz tube of Permatex 2-A

Roof Slope - 1/12 pitch to 12/12 pitch

Allowable Roof materials: three tab conventional shingles, architectural shingle, metal roof with solid substrate, and rolled roofing with solid substrate
