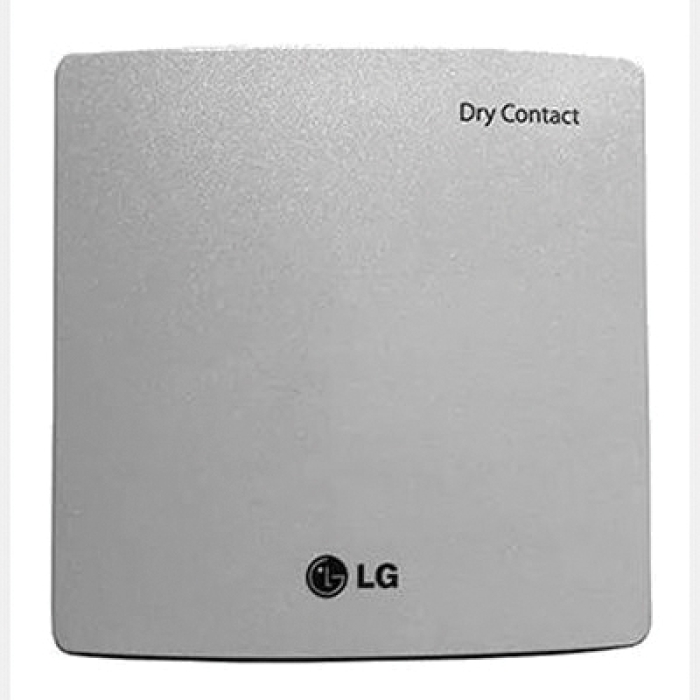

LG HVAC PDRYCB400 Dry Contact, 12 V, 3 A, 3-1/16 in H, 4‐1/8 in W, 1-3/8 in D
LG HVAC PDRYCB400 Dry Contact, 12 V, 3 A, 3-1/16 in H, 4‐1/8 in W, 1-3/8 in D

LG HVAC PDRYCB400 Dry Contact, 12 V, 3 A, 3-1/16 in H, 4‐1/8 in W, 1-3/8 in D

LG HVAC PDRYCB400 Dry Contact, 12 V, 3 A, 3-1/16 in H, 4‐1/8 in W, 1-3/8 in D

Manufacturer: LG Electronics
Brand: LG HVAC
Part #: 73736
MPN: PDRYCB400
CPN:
Amperage Rating      :      3 A
Depth      :      1-3/8 in
Height      :      3-1/16 in
Operating Temperature Rating      :      14 to 158 deg F
Product Type      :      Dry Contact
Voltage Rating      :      12 V
Width      :      4‐1/8 in

LG HVAC Dry Contact, 3 A, 3-1/16 in Height, 4‐1/8 in Width, 1-3/8 in Depth, 14 to 158 deg F Operating Temperature

Control indoor unit operation with 3rd party thermostat or controller
  • Inputs for control of unit on/off, thermo on/off, mode (cool/heat/fan) and fan speed (low, med, high)
  • Universal input to set a desired set point using DC voltage or resistance
  • Setpoint tracking logic for improved inverter utilization
  • Outputs for operation and error status
  • Compatible with all Multi V and select DFS units
  • W2 function to support third party thermostats - W2 signal to control internal electric heat for VAHU models
    • Instruction/Installation Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/LG_HVAC_PDRYCB320_Instruction_Installation_Manual.pdf
    • Owners/User Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/LG_HVAC_PDRYCB320_Owners_User_Manual.pdf
    • Submittal https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/LG_HVAC_PDRYCB320_Submittal.pdf
    • Warranty Information https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/LG_HVAC_PACS5A000_Warranty_Information.pdf
