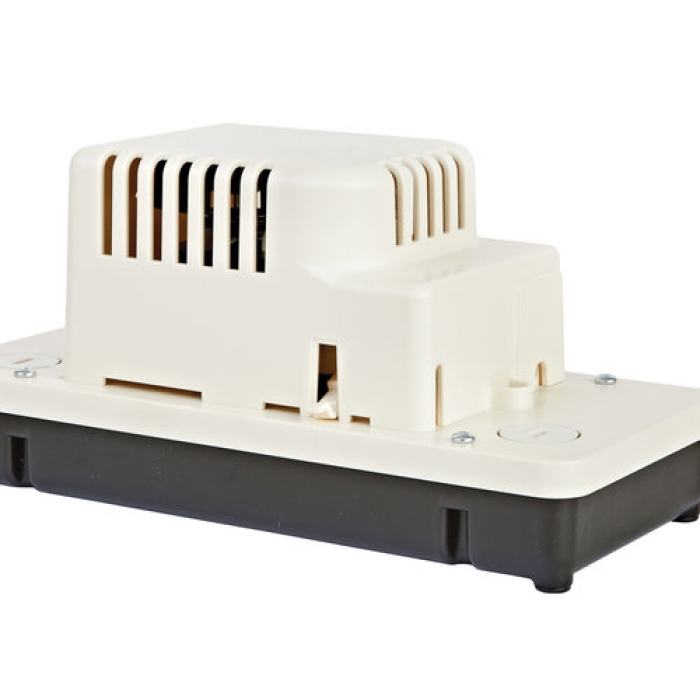

Little GIANT® VCCA-20 Series 554201101 Condensate Pump, 115 V, 1 ph, 1.33 gpm, 20 ft Max Head, 0.4375 gal Tank, 1.5 A
Little GIANT® VCCA-20 Series 554201101 Condensate Pump, 115 V, 1 ph, 1.33 gpm, 20 ft Max Head, 0.4375 gal Tank, 1.5 A

Little GIANT® VCCA-20 Series 554201101 Condensate Pump, 115 V, 1 ph, 1.33 gpm, 20 ft Max Head, 0.4375 gal Tank, 1.5 A

Little GIANT® VCCA-20 Series 554201101 Condensate Pump, 115 V, 1 ph, 1.33 gpm, 20 ft Max Head, 0.4375 gal Tank, 1.5 A

Manufacturer: Franklin Electric
Brand: Little GIANT®
Part #: 88005
MPN: 554201101
CPN:
Amperage Rating      :      1.5 A
Body Material      :      Plastic
Depth      :      5.02 in
Discharge Connection Size      :      3/8 in
Flow Rate      :      1.33 gpm
Height      :      5.23 in
Includes Safety Switch      :      Yes
Maximum Fluid Temperature      :      120 deg F
Maximum Head      :      20 ft
Maximum Working Pressure      :      8.6 psi
Motor HP      :      1/30 hp
Packaged Depth      :      6.88 in
Packaged Height      :      6.25 in
Packaged Width      :      13.61 in
Phase      :      1 ph
Product Family      :      VCCA-20 Series
Product Weight      :      5 lb
Shipping Weight      :      5.4 lb
Tank Capacity      :      0.4375 gal
Voltage Rating      :      115 V
Watts      :      93 W
Width      :      11.96 in

The VCCA-20 Series Condensate Pump is designed for the automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravitydrainage is not possible or practical. Also, suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.

Little GIANT® Condensate Pump, 115 V, 1 ph Phase, 1.33 gpm Flow Rate, 20 ft Maximum Head, 0.4375 gal Tank, 3/8 in Discharge, 1.5 A, 93 W, 1/30 hp Motor HP, Plastic Body, 5.23 in Height, 11.96 in Width, 5.02 in Depth, 120 deg F Maximum Fluid Temperature, 8.6 psi Maximum Working Pressure, Includes Safety Switch: Yes, Product Family: VCCA-20 Series

Low profile for limited space applications
  • 1/4-turn, twist-off locking check valve discharge adapter for 3/8" ID tubing
  • Additional check valve adapter included for 1/4" ID vinyl tubing
  • Pump switch test lever (for manual test operation)
  • Rubber feet on bottom of tank to isolate pump when placed on hard surface
  • 3 inlet openings suitable for 3/4" PVC pipe
  • Easy-to-knock-out plugs in two of the inlet openings
  • Includes overflow detection switch with 5" leads
  • ABS tank, motor cover, and volute
  • Intermittent liquid temperature up to 120 deg F
  • Stainless steel motor shaft
  • Thermal overload protection
    • Owners/User Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Little_GIANT_554201101_Owners_User_Manual.pdf
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Little_GIANT_554201101_Specification_Sheet.pdf
