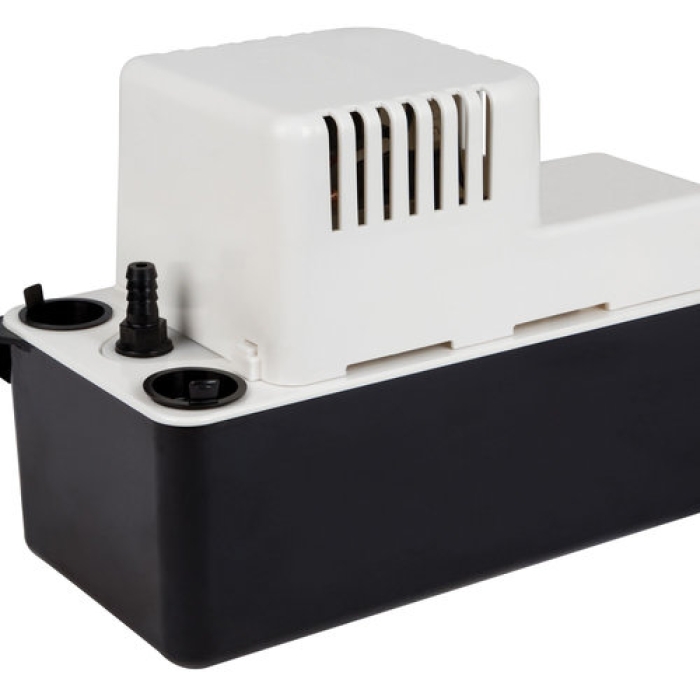

Little GIANT® VCMA-15 Series 554401 Condensate Pump, 115 V, 1 ph, 1.08 gpm, 15 ft Max Head, 0.5 gal Tank, 1 A, 60 W
Little GIANT® VCMA-15 Series 554401 Condensate Pump, 115 V, 1 ph, 1.08 gpm, 15 ft Max Head, 0.5 gal Tank, 1 A, 60 W
Manufacturer: Franklin Electric
Brand: Little GIANT®
Part #: 1766
MPN: 554401
CPN:
| Amperage Rating | : | 1 A |
| Body Material | : | Plastic |
| Depth | : | 5 in |
| Discharge Connection Size | : | 3/8 in |
| Flow Rate | : | 1.08 gpm |
| Height | : | 7 in |
| Includes Safety Switch | : | No |
| Maximum Fluid Temperature | : | 75 deg F |
| Maximum Head | : | 15 ft |
| Maximum Working Pressure | : | 6.5 psi |
| Motor HP | : | 1/50 hp |
| Packaged Depth | : | 5 in |
| Packaged Height | : | 7.13 in |
| Packaged Width | : | 12 in |
| Phase | : | 1 ph |
| Product Family | : | VCMA-15 Series |
| Product Weight | : | 3.9 lb |
| Shipping Weight | : | 4.4 lb |
| Tank Capacity | : | 0.5 gal |
| Voltage Rating | : | 115 V |
| Watts | : | 60 W |
| Width | : | 11 in |
The VCMA-15UL is ideal for automatic collection and removal of condensate from air conditioning, refrigeration and de-humidification equipment when gravity drainage is not possible or practical.
Little GIANT® Condensate Pump, 115 V, 1 ph Phase, 1.08 gpm Flow Rate, 15 ft Maximum Head, 0.5 gal Tank, 3/8 in Discharge, 1 A, 60 W, 1/50 hp Motor HP, Plastic Body, 7 in Height, 11 in Width, 5 in Depth, 75 deg F Maximum Fluid Temperature, 6.5 psi Maximum Working Pressure, Includes Safety Switch: No, Product Family: VCMA-15 Series
Vertical centrifugal pump designStainless steel motor shaft Automatic start and stop operation Some models equipped with float (solid polymer) activated switch for automatic high-level water detection (overflow detection switch) For models with overflow detection switch: dual function NO and NC operation (set to NO from factory for equipment shut down connection) Models equipped with overflow detection switch include two 5" switch lead wires 3/8" O.D. barbed discharge adapter with built-in check valve Three 1-1/8" diameter inlet openings (two fitted with removable cap plug) Thermally protected, fan cooled motor Built-in wall mount tabs on tank Removable pump float locking tab for safety during transportation (remove at time of installation) 6 ft, 3-conductor cable with grounded 3-prong plug Some models include 20' x 3/8" I.D. vinyl discharge tubing
