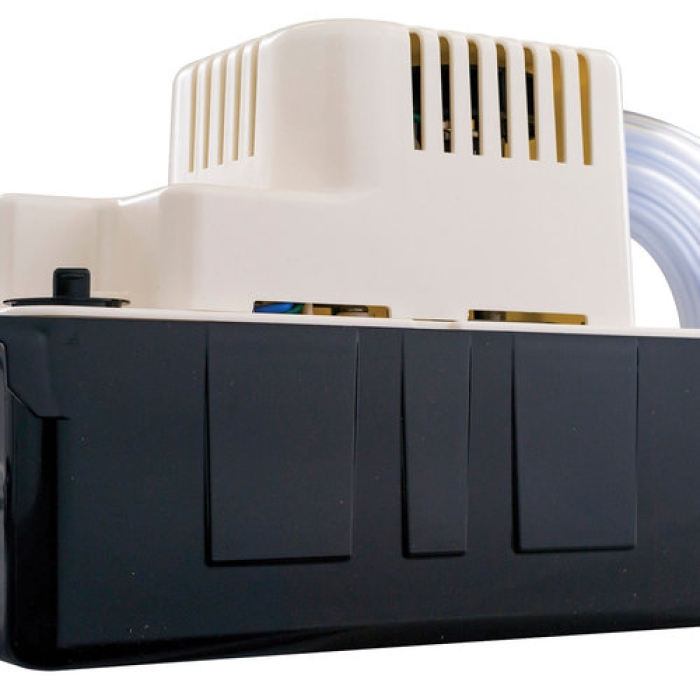

Little GIANT® VCMA-20 Series 554435 Condensate Pump, 115 V, 1 ph, 1.33 gpm, 20 ft Max Head, 0.5 gal Tank, 1.5 A, 93 W
Little GIANT® VCMA-20 Series 554435 Condensate Pump, 115 V, 1 ph, 1.33 gpm, 20 ft Max Head, 0.5 gal Tank, 1.5 A, 93 W

Little GIANT® VCMA-20 Series 554435 Condensate Pump, 115 V, 1 ph, 1.33 gpm, 20 ft Max Head, 0.5 gal Tank, 1.5 A, 93 W

Little GIANT® VCMA-20 Series 554435 Condensate Pump, 115 V, 1 ph, 1.33 gpm, 20 ft Max Head, 0.5 gal Tank, 1.5 A, 93 W

Manufacturer: Franklin Electric
Brand: Little GIANT®
Part #: 37836
MPN: 554435
CPN:
Amperage Rating      :      1.5 A
Body Material      :      Plastic
Depth      :      5 in
Discharge Connection Size      :      3/8 in
Flow Rate      :      1.33 gpm
Height      :      7 in
Includes Safety Switch      :      Yes
Maximum Fluid Temperature      :      140 deg F
Maximum Head      :      20 ft
Maximum Working Pressure      :      8.7 psi
Motor HP      :      1/30 hp
Packaged Depth      :      7.44 in
Packaged Height      :      7.13 in
Packaged Width      :      12 in
Phase      :      1 ph
Product Family      :      VCMA-20 Series
Product Weight      :      5.5 lb
Shipping Weight      :      6 lb
Tank Capacity      :      0.5 gal
Voltage Rating      :      115 V
Watts      :      93 W
Width      :      11 in

The VCMA-20 is ideal for automatic collection and removal of condensate from air conditioning, refrigeration and de-humidification equipment when gravity drainage is not possible or practical.

Little GIANT® Condensate Pump, 115 V, 1 ph Phase, 1.33 gpm Flow Rate, 20 ft Maximum Head, 0.5 gal Tank, 3/8 in Discharge, 1.5 A, 93 W, 1/30 hp Motor HP, Plastic Body, 7 in Height, 11 in Width, 5 in Depth, 140 deg F Maximum Fluid Temperature, 8.7 psi Maximum Working Pressure, Includes Safety Switch: Yes, Product Family: VCMA-20 Series

Vertical centrifugal pump design
  • Stainless steel motor shaft
  • Automatic start and stop operation
  • Some models equipped with float (solid polymer) activated switch for automatic high-level water detection (overflow detection switch)
  • For models with overflow detection switch: dual function NO and NC operation (set to NO from factory for equipment shut down connection)
  • Models equipped with overflow detection switch include two 5" switch lead wires
  • 3/8" O.D. barbed discharge adapter with built-in check valve
  • Three 1-1/8" diameter inlet openings (two fitted with removable cap plug)
  • Thermally protected, fan cooled moto
  • Built-in wall mount tabs on tank
  • Removable pump float locking tab for safety during transportation (remove at time of installation)
  • 6 ft, 3-conductor cable with grounded 3-prong plug
