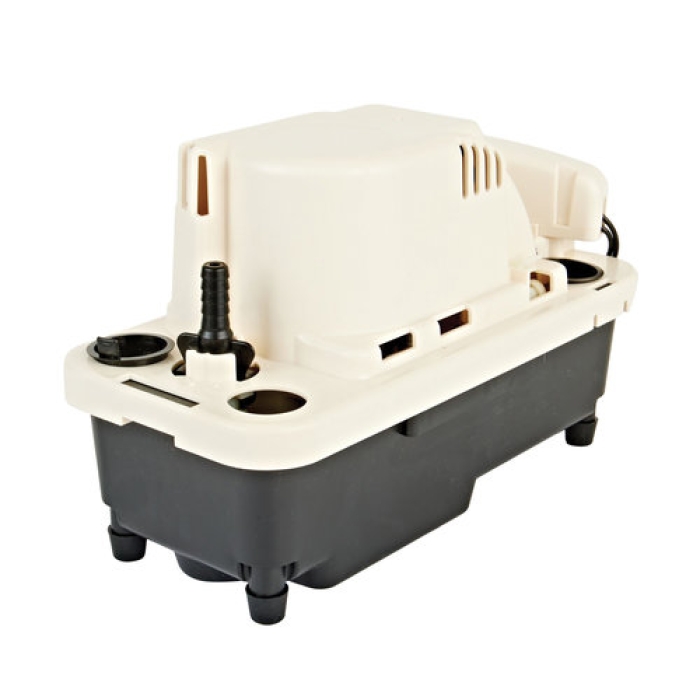

Little GIANT® VCMA-Pro Series 554631 Condensate Pump, 230 V, 1 ph, 1.33 gpm, 20 ft Max Head, 0.625 gal Tank, 3-Inlet
Little GIANT® VCMA-Pro Series 554631 Condensate Pump, 230 V, 1 ph, 1.33 gpm, 20 ft Max Head, 0.625 gal Tank, 3-Inlet
Manufacturer: Franklin Electric
Brand: Little GIANT®
Part #: 96284
MPN: 554631
CPN:
| Amperage Rating | : | 1.5 A |
| Body Material | : | Plastic |
| Depth | : | 4.8 in |
| Discharge Connection Size | : | 3/8 in |
| Flow Rate | : | 1.33 gpm |
| Height | : | 6-1/2 in |
| Includes Safety Switch | : | Yes |
| Inlet Connection Size | : | 1-1/8 in |
| Maximum Fluid Temperature | : | 140 deg F |
| Maximum Head | : | 20 ft |
| Maximum Working Pressure | : | 8.2 psi |
| Motor HP | : | 1/30 hp |
| Number of Inlets | : | 3 |
| Packaged Depth | : | 4.94 in |
| Packaged Height | : | 6.75 in |
| Packaged Width | : | 12.13 in |
| Phase | : | 1 ph |
| Product Family | : | VCMA-Pro Series |
| Shipping Weight | : | 5 lb |
| Tank Capacity | : | 0.625 gal |
| Voltage Rating | : | 230 V |
| Watts | : | 75 W |
| Width | : | 10.2 in |
Our VCMA-20ULS-PRO pump effectively delivers high-efficiency condensate removal from air conditioners, gas furnaces, and condensing boilers.
Little GIANT® Condensate Pump, 230 V, 1 ph Phase, 1.33 gpm Flow Rate, 20 ft Maximum Head, 0.625 gal Tank, 1-1/8 in Inlet Connection, 3/8 in Discharge, 3 Inlets, 1.5 A, 75 W, 1/30 hp Motor HP, Plastic Body, 6-1/2 in Height, 10.2 in Width, 4.8 in Depth, 140 deg F Maximum Fluid Temperature, 8.2 psi Maximum Working Pressure, Includes Safety Switch: Yes, Product Family: VCMA-Pro Series
