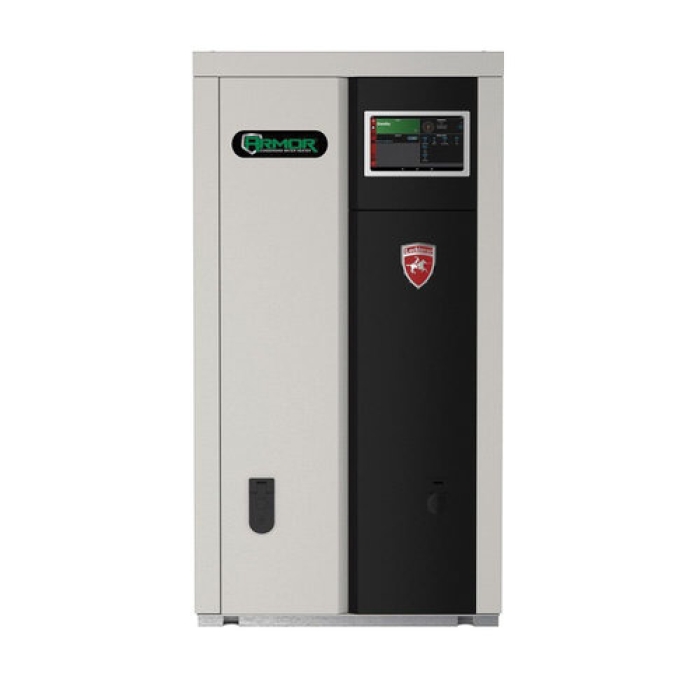

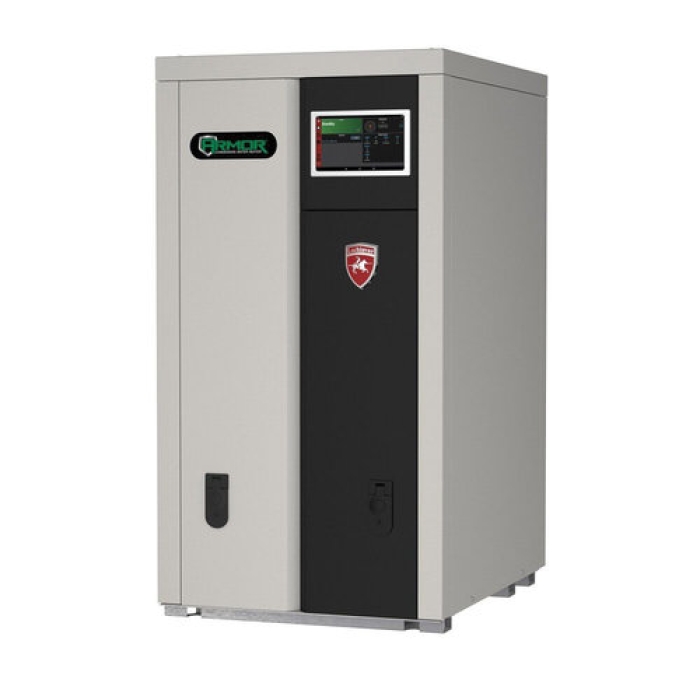

Lochinvar® Armor® AWH Series AWH0500NPM Condensing Water Heater, 5 gal, Natural Gas Fuel, Gas, Direct Vent, 120 V
Lochinvar® Armor® AWH Series AWH0500NPM Condensing Water Heater, 5 gal, Natural Gas Fuel, Gas, Direct Vent, 120 V
Manufacturer: Lochinvar
Brand: Lochinvar®
Part #: 63380
MPN: AWH0500NPM
CPN:
| BTU Heating Input Rating | : | 500000 Btu |
| Capacity | : | 5 gal |
| Condensing | : | Yes |
| Depth | : | 42-1/2 in |
| ENERGY STAR Certified | : | Yes |
| Fuel Type | : | Natural Gas |
| Gas Connection Size | : | 1 in |
| Height | : | 45 in |
| Ignition Type | : | Direct Spark |
| Low NOx | : | Yes |
| Packaged Depth | : | 51 in |
| Packaged Height | : | 54 in |
| Packaged Width | : | 31 in |
| Phase | : | 1 ph |
| Power Source | : | Gas |
| Product Family | : | Armor® AWH Series |
| Recovery Rate | : | 600 gph |
| Shipping Weight | : | 333 lb |
| Vent Size | : | 4 in |
| Vent Type | : | Direct |
| Voltage Rating | : | 120 V |
| Water Connection Size | : | 2 in |
| Width | : | 24 in |
With ten models from 400,000 to 4,000,000 Btu/hr input, ARMOR will service a large range of commercial applications and add the "green" touch that building owners and facility managers desire.
Lochinvar® Armor® Condensing Water Heater, 5 gal Capacity, Natural Gas Fuel, Gas Power Source, 500000 Btu Heating Input, Direct Vent, 120 V, 1 ph Phase, 600 gph Recovery Rate, Condensing: Yes, 4 in Vent, 2 in Water Connection, 1 in Gas Connection, Direct Spark Ignition, 45 in Height, 24 in Width, 42-1/2 in Depth, Energy Star Certified: Yes, Low NOX: Yes, Product Family: AWH Series
99% Thermal EfficiencyUp to 150' Equivalent Vent Lengths 10:1 Turndown Ratio Condensing Stainless Steel Heat Exchanger SMART TOUCH™ Operating Control CON-X-US® Remote Connect Capable
