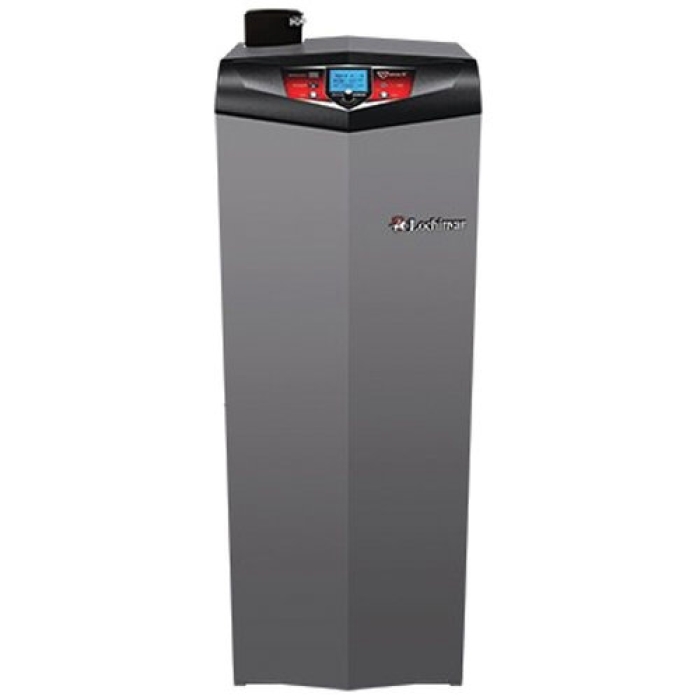

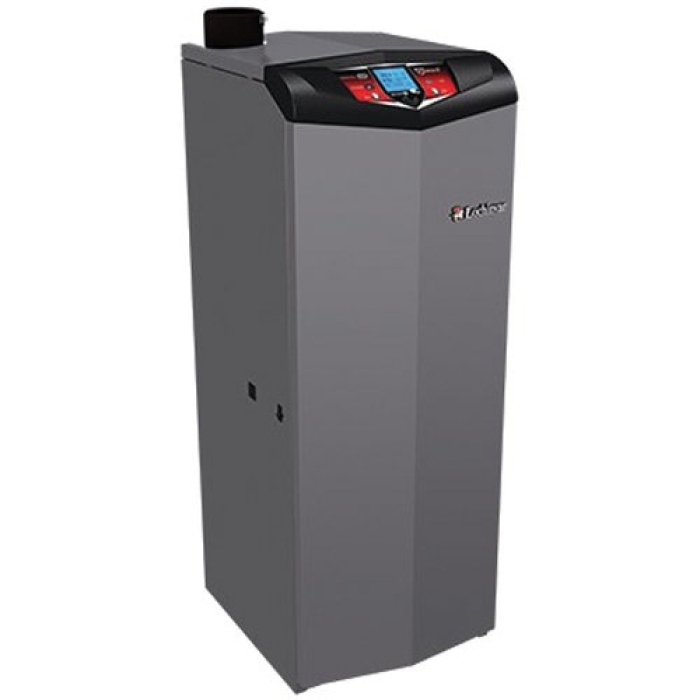

Lochinvar® Knight® KHB Series KHB085N Fire Tube Boiler, Natural Gas Fuel, 85000 Btu Input Heating BTU, 95 % AFUE, 1 ph
Lochinvar® Knight® KHB Series KHB085N Fire Tube Boiler, Natural Gas Fuel, 85000 Btu Input Heating BTU, 95 % AFUE, 1 ph
Manufacturer: Lochinvar
Brand: Lochinvar®
Part #: 79196
MPN: KHB085N
CPN:
| AFUE | : | 95 % |
| BTU Heating Input Rating | : | 85000 Btu |
| BTU Heating Output Rating | : | 79000 Btu |
| Condensing | : | Yes |
| Depth | : | 19 in |
| ENERGY STAR Certified | : | Yes |
| Fuel Type | : | Natural Gas |
| Gas Connection Size | : | 1/2 in |
| Height | : | 43-3/8 in |
| Ignition Type | : | Direct Spark |
| Inlet Connection Size | : | 2 in |
| Installation / Mounting Type | : | Floor |
| Low NOx | : | Yes |
| Media / Fluid Type | : | Water |
| Outlet Connection Size | : | 1 in |
| Packaged Depth | : | 27 in |
| Packaged Height | : | 53 in |
| Packaged Width | : | 32 in |
| Phase | : | 1 ph |
| Product Family | : | Knight® KHB Series |
| Shipping Weight | : | 165 lb |
| Vent Type | : | Direct |
| Voltage Rating | : | 120 V |
| Width | : | 16 in |
Lochinvar® Knight® Fire Tube Boiler, Natural Gas Fuel, 85000 Btu Heating Input, 79000 Btu BTU Heating Output, 95 % AFUE, Condensing: Yes, 1 ph Phase, 120 V, Direct Vent, Direct Spark Ignition, Water Media / Fluid, 1/2 in Gas Connection, 2 in Inlet Connection, 1 in Outlet Connection, Floor Installation / Mounting, 43-3/8 in Height, 16 in Width, 19 in Depth, Energy Star Certified: Yes, Low NOX: Yes, Product Family: KHB Series
Modulating burner with up to 10:1 turndownASME stainless steel heat exchanger 30 psi ASME relief valve Top and bottom water connection Vertical and horizontal direct vent PVC, CPVC, polypropylene or SS venting up to 100 ft Universal vent adapter Built-in combustion analyzer port Smart System™ control Condensate trap ECM variable speed boiler circulating pump 110 V convenience outlet Automatic reset high limit Adjustable high limit with manual reset Boiler circulating pump Zero clearances to combustible materials
