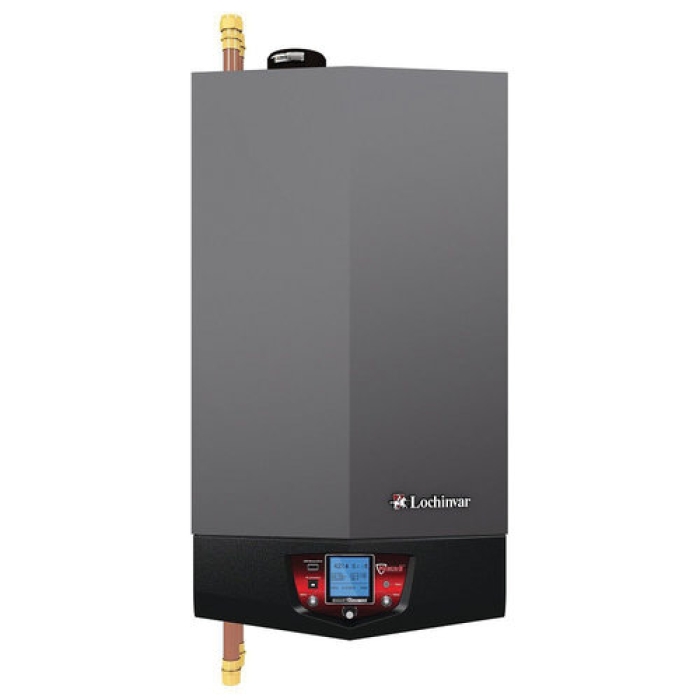

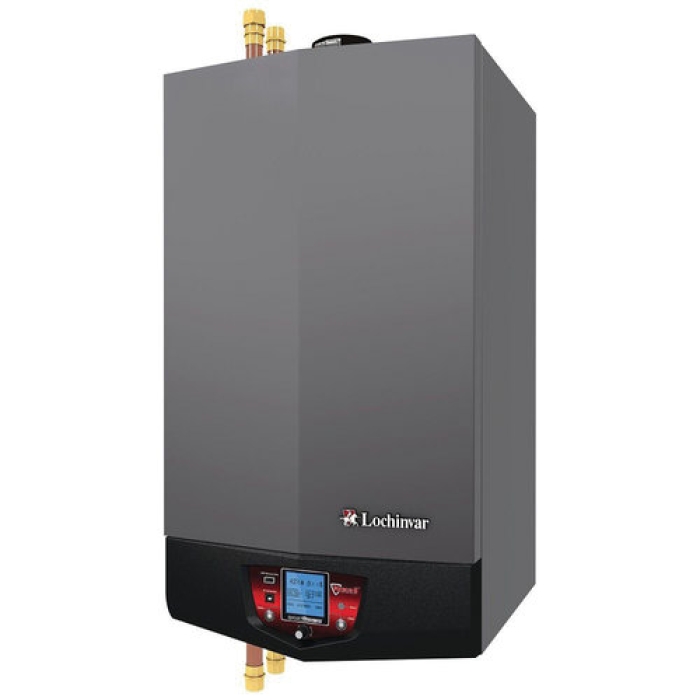

Lochinvar® Knight® WHB Series WHB285N Fire Tube Boiler, Natural Gas Fuel, 285000 Btu Input Heating BTU, 95 % AFUE, 1 ph
Lochinvar® Knight® WHB Series WHB285N Fire Tube Boiler, Natural Gas Fuel, 285000 Btu Input Heating BTU, 95 % AFUE, 1 ph
Lochinvar® Knight® WHB Series WHB285N Fire Tube Boiler, Natural Gas Fuel, 285000 Btu Input Heating BTU, 95 % AFUE, 1 ph
Lochinvar® Knight® WHB Series WHB285N Fire Tube Boiler, Natural Gas Fuel, 285000 Btu Input Heating BTU, 95 % AFUE, 1 ph

Lochinvar® Knight® WHB Series WHB285N Fire Tube Boiler, Natural Gas Fuel, 285000 Btu Input Heating BTU, 95 % AFUE, 1 ph

Lochinvar® Knight® WHB Series WHB285N Fire Tube Boiler, Natural Gas Fuel, 285000 Btu Input Heating BTU, 95 % AFUE, 1 ph

Manufacturer: Lochinvar
Brand: Lochinvar®
Part #: 79210
MPN: WHB285N
CPN:
AFUE      :      95 %
BTU Heating Input Rating      :      285000 Btu
BTU Heating Output Rating      :      264000 Btu
Condensing      :      Yes
Depth      :      21-1/8 in
ENERGY STAR Certified      :      Yes
Fuel Type      :      Natural Gas
Gas Connection Size      :      1/2 in
Height      :      41-3/4 in
Ignition Type      :      Direct Spark
Inlet Connection Size      :      3 in
Installation / Mounting Type      :      Wall
Low NOx      :      Yes
Media / Fluid Type      :      Water
Outlet Connection Size      :      1-1/4 in
Packaged Depth      :      22 in
Packaged Height      :      28 in
Packaged Width      :      52 in
Phase      :      1 ph
Product Family      :      Knight® WHB Series
Shipping Weight      :      184 lb
Vent Type      :      Direct
Voltage Rating      :      120 V
Width      :      18-3/4 in

Lochinvar® Knight® Fire Tube Boiler, Natural Gas Fuel, 285000 Btu Heating Input, 264000 Btu BTU Heating Output, 95 % AFUE, Condensing: Yes, 1 ph Phase, 120 V, Direct Vent, Direct Spark Ignition, Water Media / Fluid, 1/2 in Gas Connection, 3 in Inlet Connection, 1-1/4 in Outlet Connection, Wall Installation / Mounting, 41-3/4 in Height, 18-3/4 in Width, 21-1/8 in Depth, Energy Star Certified: Yes, Low NOX: Yes, Product Family: WHB Series

Modulating burner with up to 10:1 turndown
  • ASME stainless steel heat exchanger
  • 30 psi ASME relief valve
  • Top and bottom water connection
  • Vertical and horizontal direct vent
  • PVC, CPVC, polypropylene or SS venting up to 100 ft
  • Universal vent adapter
  • Built-in combustion analyzer port
  • Smart System™ control
  • Condensate trap
  • ECM variable speed boiler circulating pump
  • 110 V convenience outlet
  • Automatic reset high limit
  • Adjustable high limit with manual reset
  • Boiler circulating pump
  • Zero clearances to combustible materials
