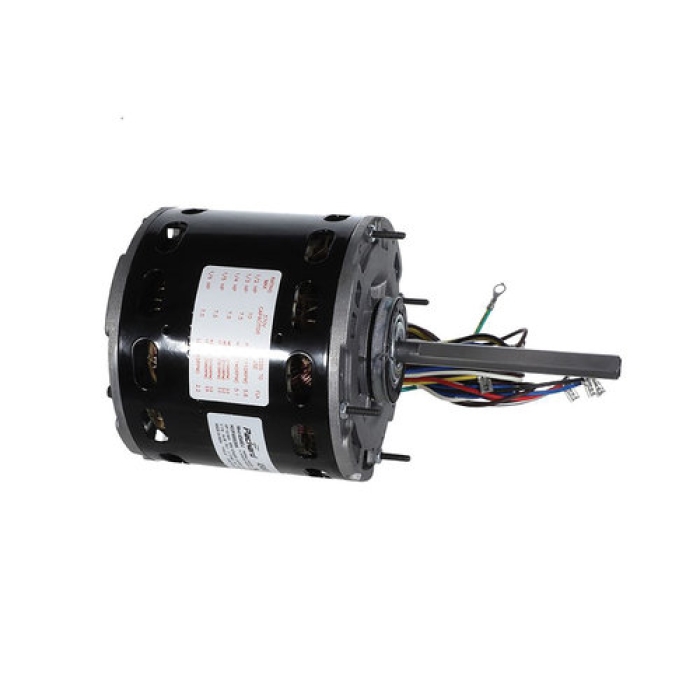

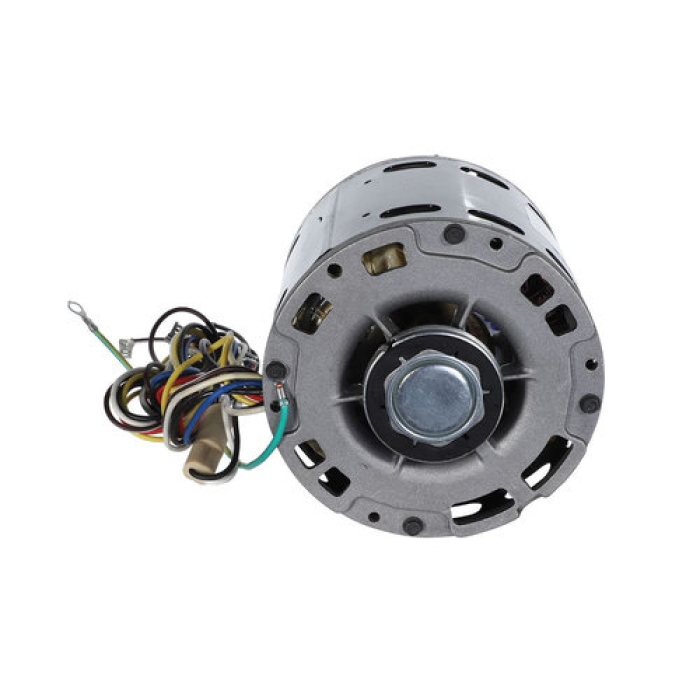

Packard 45460 Blower Motor, 1/6 to 1/2 hp Motor, 115 V, 1 ph, 1075 rpm Motor, PSC Motor, 4-Speed, Reversible
Packard 45460 Blower Motor, 1/6 to 1/2 hp Motor, 115 V, 1 ph, 1075 rpm Motor, PSC Motor, 4-Speed, Reversible
Manufacturer: DiversiTech Corporation
Brand: Packard
Part #: 80443
MPN: 45460
CPN:
| Amperage Rating | : | 2.2 A, 5.8 A |
| Bearing Type | : | Sleeve |
| Function Type | : | Blower Motor |
| Motor HP | : | 1/6 to 1/2 hp |
| Motor RPM | : | 1075 rpm |
| Motor Type | : | PSC |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 4 |
| Package Quantity | : | 1 Pack |
| Packaged Depth | : | 14 in |
| Packaged Height | : | 7.25 in |
| Packaged Width | : | 6.75 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Reversible |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 5 in |
| Voltage Rating | : | 115 V |
The Packard 45460, 1/6-1/2HPMulti-HP115VtsPSCMtr provides a flexible solution that covers a range of HP ratings. Multiple capacitor and speed combinations provide efficiency at each rating. Mounting rings, through bolts, and holes the shell provide multiple mounting options.
Packard Blower Motor, 1/6 to 1/2 hp Motor HP, 115 V, 1 ph Phase, 1075 rpm Motor RPM, PSC Motor, 4 Speed, Reversible Rotation Direction, Sleeve Bearing, 1/2 in Shaft Diameter, 48 Frame, 5 in Shaft Length, 2.2 A, 5.8 A
Multiple capacitor/speed combinationsElectrically reversible Mounting rings and thru bolts
