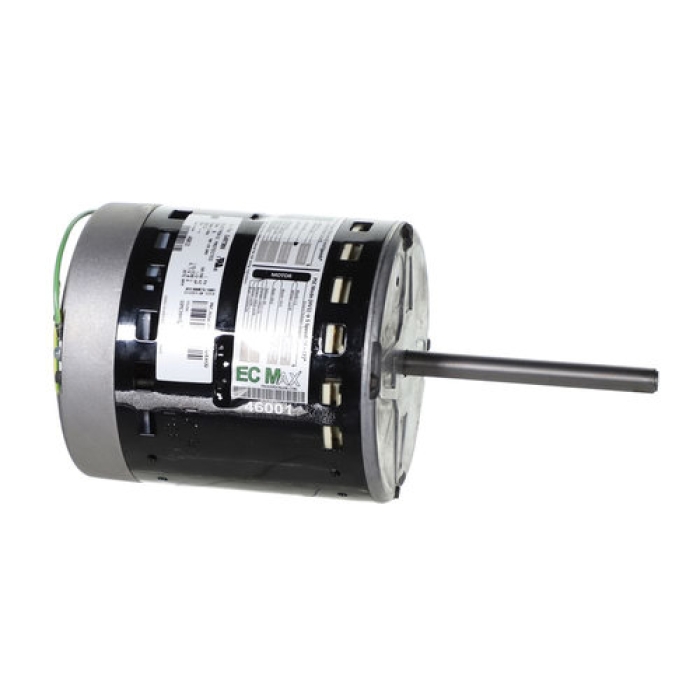

Packard 46012 Blower Motor, 1/2 hp Motor, 115/230 V, 1 ph, 1075 rpm Motor, ECM Motor, Reversible, Ball Bearing
Packard 46012 Blower Motor, 1/2 hp Motor, 115/230 V, 1 ph, 1075 rpm Motor, ECM Motor, Reversible, Ball Bearing
Manufacturer: DiversiTech Corporation
Brand: Packard
Part #: 80383
MPN: 46012
CPN:
| Amperage Rating | : | 4 A, 6.7 A |
| Bearing Type | : | Ball |
| Function Type | : | Blower Motor |
| Motor HP | : | 1/2 hp |
| Motor RPM | : | 1075 rpm |
| Motor Type | : | ECM |
| Package Quantity | : | 1 Pack |
| Packaged Depth | : | 13.5 in |
| Packaged Height | : | 6 in |
| Packaged Width | : | 6 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Reversible |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 6 in |
| Voltage Rating | : | 115/230 V |
The Packard 46012, EC Max 1/2 HP 115/230 V is able to replace constant torque EC motors and be installed as an updgrade for PSC motors. It is dual voltage rated and has rotation sensing capability. Each motor comes with a wiring harness and installation manual.
Packard Blower Motor, 1/2 hp Motor HP, 115/230 V, 1 ph Phase, 1075 rpm Motor RPM, ECM Motor, Reversible Rotation Direction, Ball Bearing, 1/2 in Shaft Diameter, 6 in Shaft Length, 4 A, 6.7 A
Constant Torque EC or PSC Replacement CapabilityDual Voltage
