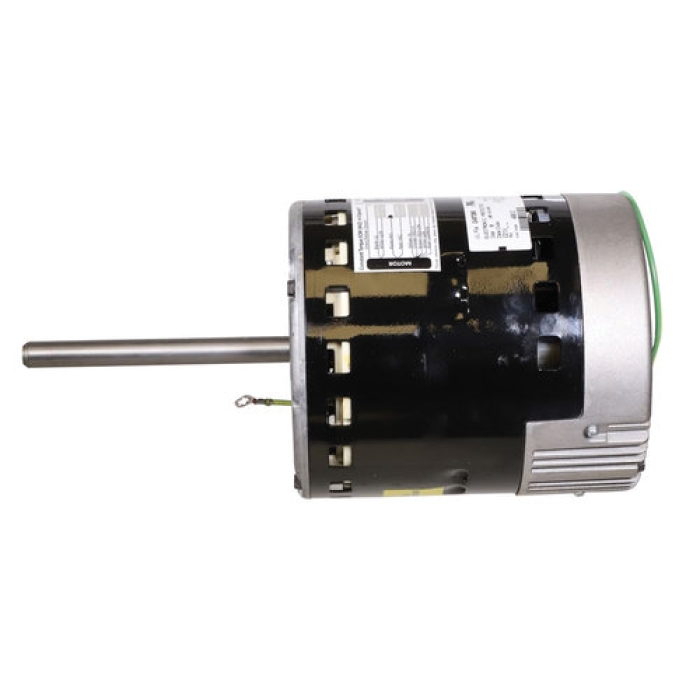

Packard 46013 Blower Motor, 1/3 hp Motor, 115/230 V, 1 ph, 1075 rpm Motor, ECM Motor, 4-Speed, Reversible, 3 A, 5 A
Packard 46013 Blower Motor, 1/3 hp Motor, 115/230 V, 1 ph, 1075 rpm Motor, ECM Motor, 4-Speed, Reversible, 3 A, 5 A
Manufacturer: DiversiTech Corporation
Brand: Packard
Part #: 80445
MPN: 46013
CPN:
| Amperage Rating | : | 3 A, 5 A |
| Bearing Type | : | Ball |
| Function Type | : | Blower Motor |
| Motor HP | : | 1/3 hp |
| Motor RPM | : | 1075 rpm |
| Motor Type | : | ECM |
| Number of Speeds | : | 4 |
| Package Quantity | : | 1 Pack |
| Packaged Depth | : | 13.25 in |
| Packaged Height | : | 6.25 in |
| Packaged Width | : | 6.25 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Reversible |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 5 in |
| Voltage Rating | : | 115/230 V |
The Packard 46013, EC Max 1/3 HP 115/230V EC 1070 is able to replace constant torque EC motors and be installed as an updgrade for PSC motors. It is dual voltage rated and has rotation sensing capability. Each motor comes with a wiring harness and installation manual.
Packard Blower Motor, 1/3 hp Motor HP, 115/230 V, 1 ph Phase, 1075 rpm Motor RPM, ECM Motor, 4 Speed, Reversible Rotation Direction, Ball Bearing, 1/2 in Shaft Diameter, 5 in Shaft Length, 3 A, 5 A
Constant Torque EC or PSC Replacement CapabilityDual Voltage
