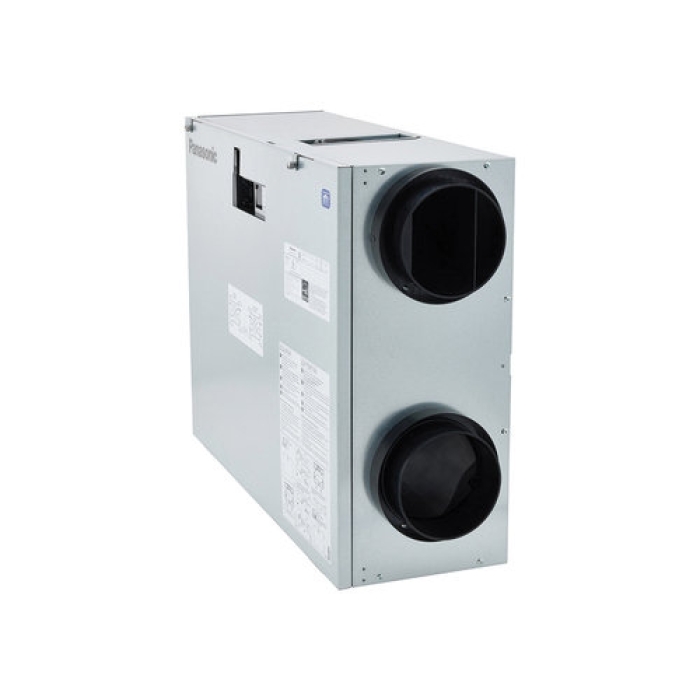

Panasonic Intelli-Balance® Elite Plus+ FV-12ESC1 Energy Recovery Ventilator, 30 to 120 cfm, 120 V, 28-5/8 in L, 10 in H
Panasonic Intelli-Balance® Elite Plus+ FV-12ESC1 Energy Recovery Ventilator, 30 to 120 cfm, 120 V, 28-5/8 in L, 10 in H
Panasonic Intelli-Balance® Elite Plus+ FV-12ESC1 Energy Recovery Ventilator, 30 to 120 cfm, 120 V, 28-5/8 in L, 10 in H
Panasonic Intelli-Balance® Elite Plus+ FV-12ESC1 Energy Recovery Ventilator, 30 to 120 cfm, 120 V, 28-5/8 in L, 10 in H
Panasonic Intelli-Balance® Elite Plus+ FV-12ESC1 Energy Recovery Ventilator, 30 to 120 cfm, 120 V, 28-5/8 in L, 10 in H

Panasonic Intelli-Balance® Elite Plus+ FV-12ESC1 Energy Recovery Ventilator, 30 to 120 cfm, 120 V, 28-5/8 in L, 10 in H

Panasonic Intelli-Balance® Elite Plus+ FV-12ESC1 Energy Recovery Ventilator, 30 to 120 cfm, 120 V, 28-5/8 in L, 10 in H

Manufacturer: Panasonic Corporation
Brand: Panasonic
Part #: 97821
MPN: FV-12ESC1
CPN:
CFM Airflow      :      30 to 120 cfm
Energy Star Certified      :      Yes
For Duct Size      :      6 in
Height      :      10 in
Installation / Mounting Type      :      Ceiling, Floor, Wall
Length      :      28-5/8 in
Motor Type      :      ECM
Operating Temperature Rating      :      95 deg F Cooling, 32 deg F Heating
Product Family      :      Intelli-Balance® Elite Plus+
Temperature Recovery Efficiency      :      83 %
Voltage Rating      :      120 V
Watts      :      21 to 62 W Heating, 22 to 64 W Cooling
Width      :      22-5/8 in

The Intelli-Balance® Elite Plus+ Energy Recovery Ventilator (ERV) series is ideal for multifamily units and new home build constructions. They are customizable, delivering high energy recovery performance achieving up to 90% SRE, designed to meet Green Building Code standards. These unique and cost-effective ERVs have been engineered for total versatility and installation flexibility in any climate zone. The occupant-controlled boost function can move the ERV fan speed to maximum CFM when activated.

Panasonic Intelli-Balance® Elite Plus+ Energy Recovery Ventilator, 30 to 120 cfm, 120 V, 83 % Temperature Recovery Efficiency, Ceiling, Floor, Wall Installation / Mounting, 28-5/8 in Length, 22-5/8 in Width, 10 in Height, 21 to 62 W Heating, 22 to 64 W Cooling, For Duct Size: 6 in, ECM Motor, 95 deg F Cooling, 32 deg F Heating Operating Temperature, Energy Star Certified: Yes

All models can be adjusted for mirror installation and are equipped with a standard power cord and a hardwire adaptor kit
  • Two (2) powerful ECM motors with Smart Flow™ technology ensure optimum CFM output by overcoming static pressure to effectively remove contaminated air and replace with fresh air
  • Multi-speed selector (30 to 120 CFM, 30 to 150 CFM) provides customizable airflow to create balanced, positive or negative pressure within the home
  • Core material permeated with anti-mold treatment. Two (2) MERV 13 filters included, optional MERV 6 (washable) and MERV 13 replacements available
  • Sensible Energy Recovery (SRE): The high SRE percentages demonstrate the system's ability to efficiently transfer heat, ensuring that tempered air is retained and not lost. This means less work for the HVAC system to maintain desired temperatures.
  • Total Recovery Efficiency (TRE): High TRE percentages indicate superior energy efficiency, reducing the strain on the cooling systems by expelling both heat and moisture during incidences of high relative humidity
