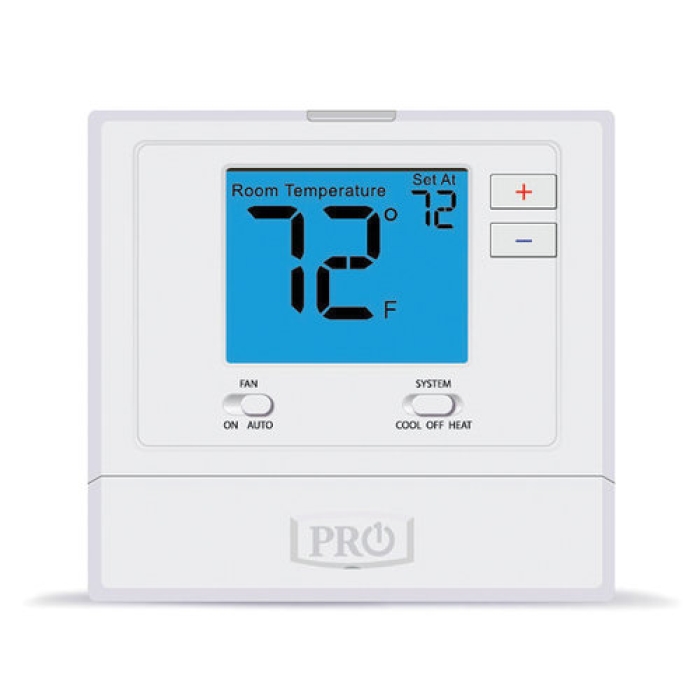

PRO1® T701 Non-Programmable Thermostat, 24 V, 1H/1C-Stage, Auto Changeover: Yes, Battery, Hardwired, Alkaline

PRO1® T701 Non-Programmable Thermostat, 24 V, 1H/1C-Stage, Auto Changeover: Yes, Battery, Hardwired, Alkaline

Manufacturer: Pro1 IAQ
Brand: PRO1®
Part #: 51714
MPN: T701
CPN:
Accuracy      :      +/-1 deg F
Ambient Temperature Rating      :      32 to 105 deg F
Auto Changeover      :      Yes
Battery Type      :      Alkaline
Depth      :      1.1 in
Display Type      :      Backlit
Height      :      4.4 in
Humidity Rating      :      90% Non-Condensing
Installation / Mounting Type      :      Junction Box, Wall
Number of Stages      :      1H/1C
Power Source      :      Battery, Hardwired
Setpoint Temperature Range      :      44 to 90 deg F
Voltage Rating      :      24 V
Width      :      4.7 in

PRO1® Non-Programmable Thermostat, 1H/1C Stages, Auto Changeover: Yes, Battery, Hardwired Power Source, Alkaline Battery, Backlit Display, 44 to 90 deg F Setpoint Temperature Range, 32 to 105 deg F Ambient Temperature Rating, +/-1 deg F Accuracy, 90% Non-Condensing Humidity Rating, Junction Box, Wall Installation / Mounting, 4.4 in Height, 4.7 in Width, 1.1 in Depth

4 sq-in display
  • Blue backlight
  • Glow in the dark light button
  • Easy access battery compartment
  • Electric or Gas configurable
  • Seperate heating and cooling swing (cycle rate) adjustments
  • Room temperature calibration adjustments
  • 5 minute compressor delay protection (selectable on or off)
  • Simple private label badge system
  • Easy wire color coded terminal blocks
  • Universal sub-base
  • Battery or 24v power
    • Catalog https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/PRO1_T701_Catalog.pdf
    • Instruction/Installation Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/PRO1_T701_Instruction_Installation_Manual.pdf
    • Submittal https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/PRO1_T701_Submittal.pdf
