| Accuracy | : | +/-1 deg F |
| Ambient Temperature Rating | : | 32 to 105 deg F |
| Amperage Rating | : | 1.5 A |
| Depth | : | 1.1 in |
| Display Type | : | Backlit |
| Height | : | 4.4 in |
| Humidity Rating | : | 90% Non-Condensing |
| Installation / Mounting Type | : | Junction Box, Wall |
| Number of Stages | : | 2H/1C, 1H/1C |
| Power Source | : | Hardwired |
| Setpoint Temperature Range | : | 44 to 90 deg F |
| Terminal Designations | : | Rc, Rh, Y, W2, W/E, G, B, O |
| Voltage Rating | : | 24 V |
| Width | : | 4.7 in |

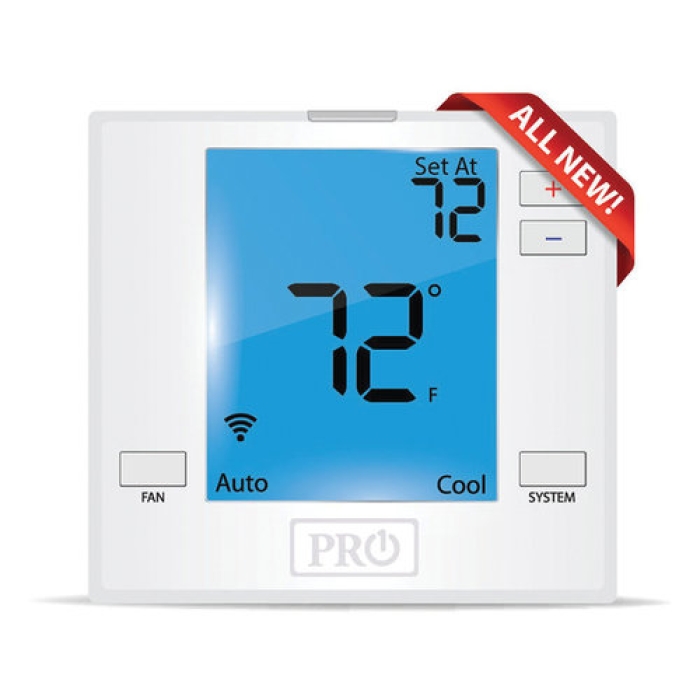

PRO1® Wi-Fi Thermostat, 2H/1C, 1H/1C Stages, Hardwired Power Source, Backlit Display, 44 to 90 deg F Setpoint Temperature Range, 32 to 105 deg F Ambient Temperature Rating, +/-1 deg F Accuracy, 90% Non-Condensing Humidity Rating, 1.5 A, Rc, Rh, Y, W2, W/E, G, B, O Terminal Designations, Junction Box, Wall Installation / Mounting, 4.4 in Height, 4.7 in Width, 1.1 in Depth
7 sq. inch displayBlue backlight Glow in the dark light button Easy access battery compartment Electric or Gas configurable Seperate heating and cooling swing (cycle rate) adjustments Room temperature calibration adjustments 5 minute compressor delay protection (selectable on or off) Simple private label badge system Easy wire color coded terminal blocks Universal sub-base
