| Accuracy | : | +/-1 deg F |
| Ambient Temperature Rating | : | 32 to 105 deg F |
| Amperage Rating | : | 1.5 A |
| Depth | : | 1.1 in |
| Display Type | : | Backlit |
| Height | : | 4.4 in |
| Humidity Rating | : | 90% Non-Condensing |
| Installation / Mounting Type | : | Junction Box, Wall |
| Number of Stages | : | 2H/1C, 1H/1C |
| Power Source | : | Battery, Hardwired |
| Setpoint Temperature Range | : | 44 to 90 deg F |
| Terminal Designations | : | R, C, Y, W, O, B, GH, GL |
| Voltage Rating | : | 24 V |
| Width | : | 4.7 in |

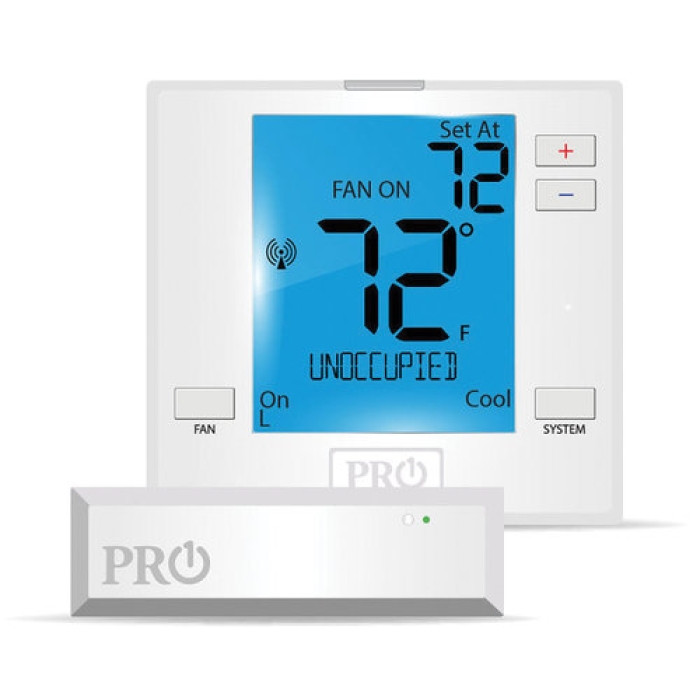

PRO1® Non-Programmable Thermostat, 2H/1C, 1H/1C Stages, Battery, Hardwired Power Source, Backlit Display, 44 to 90 deg F Setpoint Temperature Range, 32 to 105 deg F Ambient Temperature Rating, +/-1 deg F Accuracy, 90% Non-Condensing Humidity Rating, 1.5 A, R, C, Y, W, O, B, GH, GL Terminal Designations, Junction Box, Wall Installation / Mounting, 4.4 in Height, 4.7 in Width, 1.1 in Depth
7 sq. inch displayImproved blue back light Glow in the dark light button 5 minute compressor delay protection (selectable on or off) Adjustable setpoint limits Separate heating and cooling swing (cycle rate) adjustments Room temperature calibration adjustments Simple private label badge system Easy wire color coded terminal blocks Universal sub-base
