| Accuracy | : | +/-1 deg F |
| Ambient Temperature Rating | : | 32 to 105 deg F |
| Amperage Rating | : | 1.5 A |
| Auto Changeover | : | Yes |
| Depth | : | 1.1 in |
| Display Type | : | Backlit |
| Height | : | 4.4 in |
| Humidity Rating | : | 90% Non-Condensing |
| Installation / Mounting Type | : | Junction Box, Wall |
| Number of Stages | : | 2H/2C, 3H/2C |
| Power Source | : | Hardwired |
| Setpoint Temperature Range | : | 44 to 90 deg F |
| Terminal Designations | : | Rc, Rh, G, Y, Y2, C, O, B, W/E, W2 |
| Voltage Rating | : | 24 V |
| Width | : | 4.7 in |

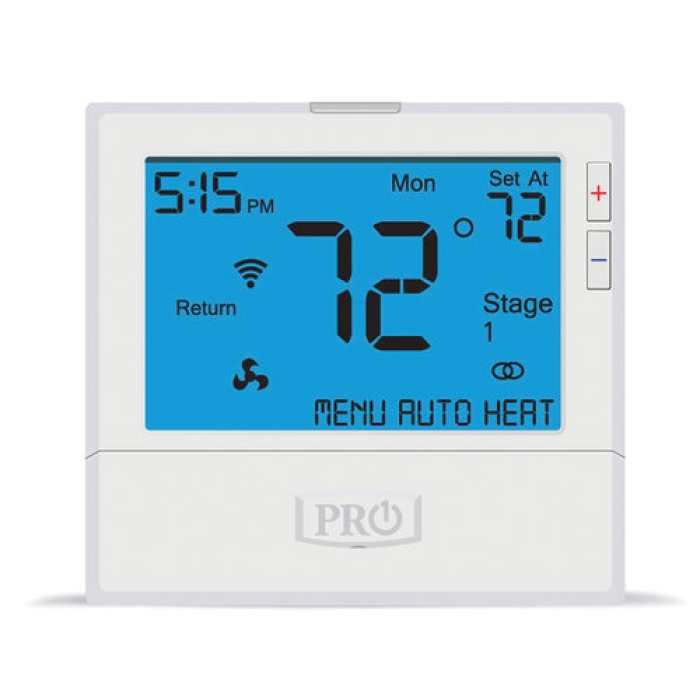

PRO1® Wi-Fi Thermostat, 2H/2C, 3H/2C Stages, Hardwired Power Source, Auto Changeover: Yes, Backlit Display, 44 to 90 deg F Setpoint Temperature Range, 32 to 105 deg F Ambient Temperature Rating, +/-1 deg F Accuracy, 90% Non-Condensing Humidity Rating, 1.5 A, Rc, Rh, G, Y, Y2, C, O, B, W/E, W2 Terminal Designations, Junction Box, Wall Installation / Mounting, 4.4 in Height, 4.7 in Width, 1.1 in Depth
Auto ChangeoverEasy menu driven programming Intuitive wake, leave, return, sleep programming icons 8 sq. inch display Blue backlight Glow in the dark light button Programmable fan Electric or Gas configurable Room temperature calibration adjustment Separate heating and cooling swing (cycle rate) adjustments Keypad lockout Heating and cooling setpoint limits 5 minute compressor delay protection (selectable on or off) Filter change indicator(selectable on or off) Simple private label badge system Easy wire color coded terminal blocks Universal sub-base
