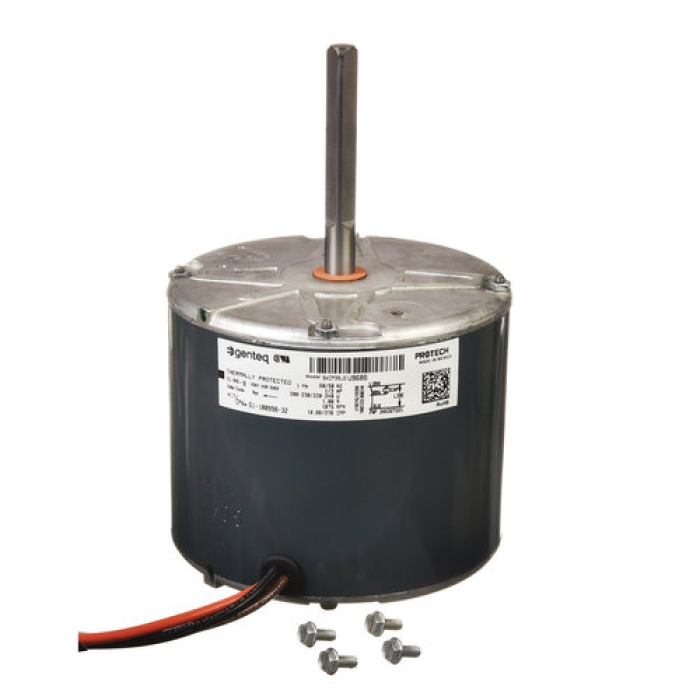

PROTECH™ 51-100998-32 Direct Drive Condenser Fan Motor, 1/3 hp Motor, 208/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1.8 A
PROTECH™ 51-100998-32 Direct Drive Condenser Fan Motor, 1/3 hp Motor, 208/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1.8 A
| Amperage Rating | : | 1.8 A |
| Bearing Type | : | Ball |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Condenser Fan Motor |
| Height | : | 8-3/8 in |
| Motor HP | : | 1/3 hp |
| Motor RPM | : | 1075 rpm |
| Mounting Type | : | End-Boss, Shell Band |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 7.35 in |
| Packaged Height | : | 6.9 in |
| Packaged Width | : | 14.75 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Counter Clockwise |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 3-21/32 in |
| Shipping Weight | : | 13.11 lb |
| Voltage Rating | : | 208/230 V |
| Width | : | 5-39/64 in |
This condensing motor by ProTech® transfers heat from the AC refrigerant, through the condenser coils and out to the outside environment. This process prevents your air conditioner compressor from overheating. This AC unit fan motor replacement extends equipment life by replacing old or damaged air conditioner motors in ventilators, HVAC fans and blowers. These AC components match the original manufacturer's air conditioning unit fan motor to ensure seamless installation and consistent performance.
PROTECH™ Direct Drive Condenser Fan Motor, 1/3 hp Motor HP, 208/230 V, 1 ph Phase, 1075 rpm Motor RPM, 48 Frame, 1 Speed, 1/2 in Shaft Diameter, 3-21/32 in Shaft Length, 8-3/8 in Height, 5-39/64 in Width, Counter Clockwise Rotation Direction, 1.8 A, Ball Bearing, 60 Hz Frequency, End-Boss, Shell Band Mounting
